ATC3560-IP7-NA4C NVIDIA Jetson Orin Nano Edge AI Computer
NVIDIA® Jetson Orin Nano™ Solution Accelerated Edge AI Computer
Key Features:
- Built-in NVIDIA Jetson Orin Nano™ SoM, up to 67 INT8 Sparse TOPS AI performance in Super Mode
- 4 x GbE PoE+ port for IP CAM/LiDAR sensors
- HEVC/H.265 hardware codec, 11 x 1080p30 compute power (decoded)
- Wide range operating temperature of -25°C~60°C (fanless, in Super Mode)
- The rugged, compact-sized, fanless design with an IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 9V~36V DC-in with ignition control & OCP/UVP
- CE/FCC, UKCA, and E-mark certified
Description
Product Overview

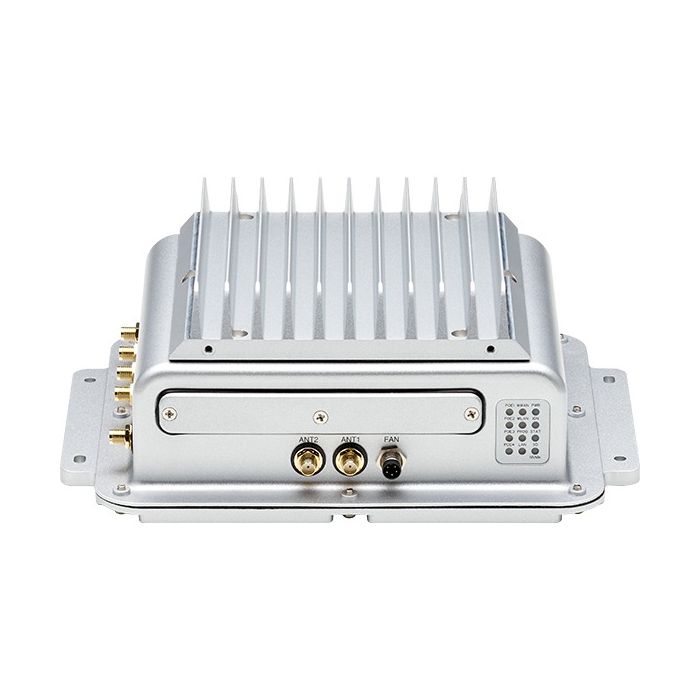

The NEXCOM ATC 3560-IP7-NA4C is a rugged edge-AI telematics computer built for demanding in-vehicle and rail environments. Powered by the NVIDIA Jetson Orin Nano system-on-module, it delivers up to 67 TOPS of AI inference performance for real-time analytics, machine vision, and intelligent transport workloads. Four GbE PoE+ ports allow direct connection to IP cameras, LiDAR, or other sensor devices, while the wide-range 9 V to 36 V DC input with ignition control ensures stable operation in vehicles and rolling stock.
The system features a fanless, IP67-rated enclosure for dust and water protection, making it suitable for harsh outdoor and mobile environments. A compact mechanical footprint enables installation in tight spaces, and a full set of I/O, including USB, HDMI, CAN bus, RS-232, and dual SIM support, provides the connectivity required for advanced telematics and AI applications.
Key Features
High Performance AI
-
NVIDIA Jetson Orin Nano module with 6-core ARM CPU and Ampere-architecture GPU
-
Up to 67 TOPS AI inference performance in Super Mode
-
Hardware video acceleration supporting multiple 1080p decode streams
-
PCIe 4.0 x4 NVMe SSD slot for high-speed data logging and storage workloads
Rugged and Reliable Design
-
Fully sealed IP67 enclosure for dust and water resistance
-
Fanless thermal design for long-term durability
-
Operating temperature from –25 °C to 60 °C (depending on PoE loading)
-
Certified for vibration and shock according to transportation-grade standards
Power and Connectivity
-
Wide DC input range from 9 V to 36 V with ignition control
-
Four Gigabit PoE+ ports for cameras, sensors, and edge devices
-
Additional non-PoE Gigabit Ethernet port with jumbo-frame and PTP support
-
Rich I/O including USB 3.2, RS-232, HDMI 2.0, OTG, and isolated CAN bus
Wireless Expansion
-
Dual SIM support for cellular redundancy
-
Optional LTE, 5G NR, and Wi-Fi 5/6 modules via M.2 and mini-PCIe expansion
-
Flexible M.2 Key M and Key B slots for storage and modem upgrades
Certifications and Compliance
-
CE, FCC Class A, UKCA, and E-Mark compliant
-
Designed to meet in-vehicle and industrial environmental standards
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC3560-IP7-NA4C-8 (P/N: 10AT0356002X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin Nano™ 8GB, Super Mode, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
