ATC3560-IP7-NX4C NVIDIA Jetson Orin NX Edge AI Computer
NVIDIA Jetson Orin™ NX Solution Accelerated Edge AI Computer
Key Features:
- Built-in NVIDIA Jetson Orin™ NX SoM, up to 70/100 INT8 Sparse TOPS AI performance
- 4 x GbE PoE+ port for IP CAM/LiDAR sensors
- HEVC/H.265 hardware codec, 18 x 1080p30 compute power (decoded)
- Wide range operating temperature of -25°C~60°C (fanless)
- The rugged, fanless design with full IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 9V~36V DC-in with ignition control & OCP/UVP
- CE/FCC, UKCA, and E-mark certified
Description
Product Overview

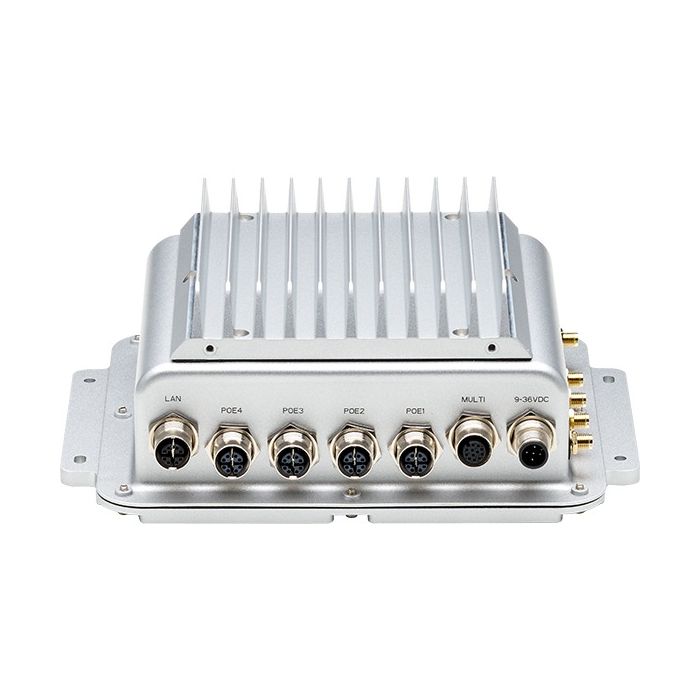

The NEXCOM ATC 3560-IP7-NX4C is a ruggedised, IP67-rated edge AI telematics computer built for in-vehicle and industrial transport deployments. It is powered by the NVIDIA Jetson Orin NX system-on-module (SoM) offering up to 70 TOPS with the 8 GB variant or up to 100 TOPS with the 16 GB variant of AI inference performance. The system is designed for real-time sensor fusion, machine vision and telematics workloads—such as ADAS, autonomous mobile robots, intelligent transportation, and fleet video analytics.
Equipped with four GbE PoE+ ports for direct connection to IP cameras or LiDAR sensors, it supports wide-range DC input from 9 V to 36 V with ignition control and overcurrent/undervoltage protection, making it ideal for mobile and vehicle-based environments. The fanless thermal design operates reliably from –25 °C to +60 °C, in combination with MIL-STD-810H shock and vibration certification, to withstand rigorous transport conditions.
Key Features
High Performance AI
-
NVIDIA Jetson Orin NX module with 6-core ARM Cortex-A78AE CPU and Ampere architecture GPU
-
AI inference performance up to 70 TOPS (8 GB) or 100 TOPS (16 GB)
-
Hardware acceleration for multi-stream H.265 video decoding
-
NVMe storage support via M.2 Key M slot for high-speed AI data processing
Rugged and Reliable Design
-
Fully sealed IP67-rated enclosure for dust and water protection
-
Fanless thermal design optimised for long-term reliability
-
Operating temperature range from –25 °C to 60 °C, depending on PoE load
-
Tested to MIL-STD-810H vibration and shock standards for transportation use
Power and Connectivity
-
Wide DC input range from 9 V to 36 V with ignition control
-
Four GbE M12 X-coded PoE+ ports for cameras and sensing devices
-
One additional non-PoE M12 X-coded GbE port with jumbo-frame and PTP support
-
Multiple I/O interfaces, including USB 3.2, HDMI 2.0, RS-232, OTG, DI/DO, and an isolated CAN bus
Wireless Expansion
-
Dual SIM capabilities for cellular redundancy
-
Support for LTE, 5G NR, and Wi-Fi 5/6 modules through M.2 and mini-PCIe expansion
-
Additional M.2 slots for modem or storage upgrades
Certifications and Compliance
-
CE, FCC Class A, UKCA, and E-Mark automotive certification
-
Designed for demanding mobile and industrial AI environments
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3560-IP7-NX4C (P/N: 10AT0356003X0)
IP67 rated AI edge computer, NVIDIA Jetson Orin™ NX 8GB, fanless, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
ATC 3560-IP7-NX4C-16 (P/N: 10AT0356004X0)
IP67 rated AI edge computer, NVIDIA Jetson Orin™ NX 16GB, fanless, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
