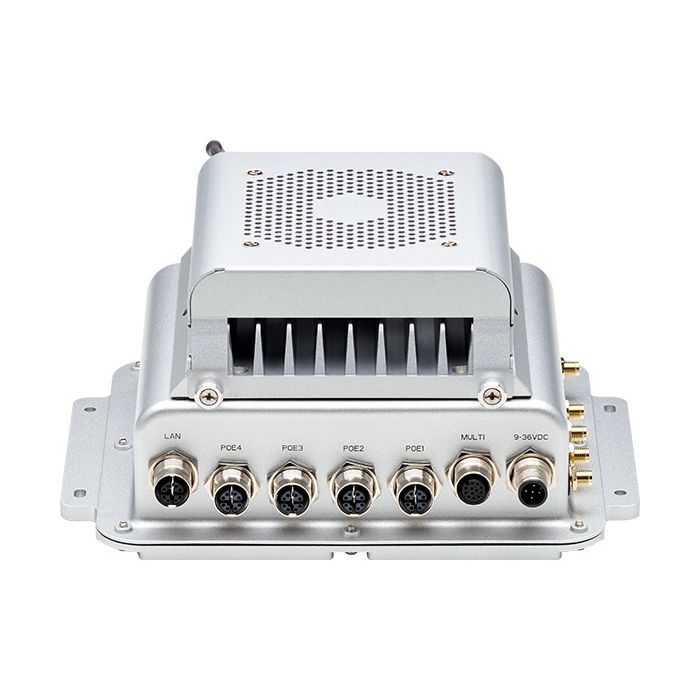

ATC3560-IP7-NX4CF NVIDIA Jetson Orin NX High Performance Edge AI Computer
NVIDIA Jetson Orin NX Solution Accelerated High Performance Edge AI Computer
Key Features:
- NVIDIA Jetson Orin NX SoM, up to 157 INT8 Sparse TOPS AI performance in Super Mode
- 4 x GbE PoE+ port for IP CAM/LiDAR sensors
- HEVC/H.265 hardware codec, 18 x 1080p30 compute power (decoded)
- Wide range operating temperature of -25°C~60°C (fan kit, in Super Mode)
- The rugged, fankit design with full IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 9V~36V DC-in with ignition control & OCP/UVP
- CE/FCC, UKCA, and E-mark certified
Description
Product Overview
The NEXCOM ATC3560-IP7-NX4CF is a rugged edge AI telematics computer designed for demanding mobile, rail and industrial environments. It is powered by the NVIDIA Jetson Orin NX system-on-module, delivering high AI inference performance suitable for multi-camera analytics, autonomous mobile robots, ADAS support, sensor fusion and real-time telematics tasks. The system features an IP67-rated enclosure, wide DC power input with ignition control, multiple Ethernet ports and flexible I/O, making it ideal for video surveillance, fleet intelligence, edge computing and intelligent transport applications in vehicles, rail cars, and harsh outdoor conditions.
Key Features
High Performance AI
-
NVIDIA Jetson Orin NX system-on-module offering high throughput for AI inference and machine vision
-
Capable of handling multi-camera feeds, object detection, tracking and real-time analytics
-
Hardware video acceleration for efficient processing of multiple HD streams
-
NVMe SSD storage support for fast local data access and model loading
Rugged and Reliable Design
-
Fully sealed IP67 enclosure for dust and water protection, including the fan kit
-
Fanless operation for reliable performance in harsh environments
-
Wide operating temperature of -25°C~60°C (fan kit, in Super Mode) range suitable for mobile, rail and outdoor deployments
-
Designed for vibration and shock conditions common to transport and industrial applications
Power and Connectivity
-
Wide DC input range of 9-36VDC with ignition control and electrical protective circuits for vehicle integration
-
Four Gigabit Ethernet ports with PoE/PoE+ support for cameras, sensors and network devices
-
Provides power to IEEE 802.3af/at standard PoE devices and supports power management for connected equipment
-
Rich I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital inputs/outputs, OTG and HDMI for display or local access
Wireless Expansion
-
Support for optional 5G NR, LTE and Wi-Fi modules for continuous connectivity
-
Dual SIM capability for network redundancy and enhanced uptime
-
GNSS positioning options for fleet tracking, geofencing and routing
Certifications and Compliance
-
Designed to meet industrial, transport and mobile environmental requirements
-
Suitable for fleet, rail, logistics, public safety, and intelligent transport edge systems
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3560-IP7-NX4CF (P/N: 10AT0356000X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin™ NX 8GB, Super Mode, fan kit, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
ATC 3560-IP7-NX4CF-16 (P/N: 10AT0356001X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin™ NX 16GB, Super Mode, fan Kit, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
