ATC3561-NA4C NVIDIA Jetson Orin Nano Edge AI Computer

SKU: ATC3561-NA4C-8

NVIDIA® Jetson Orin Nano™ Solution Accelerated Edge AI Computer

Key Features:

  • Built-in NVIDIA Jetson Orin Nano SOM, up to 67 INT8 Sparse TOPS AI performance
  • Rugged, palm-sized, and fanless/fan kit design
  • 4 x GbE PoE+ port (30W) for IP CAM/LiDAR sensors
  • HEVC/H.265 hardware decode, supports up to 11 x 1080p30
  • Wide range operating temperature of -25°C~60°C (fanless, in Super Mode)
  • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
  • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
  • DC 9V~36V input with ignition control & OCP/OVP
  • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
  • Military standard of MIL-STD-810H for anti-vibration/shock
  • CE/FCC, UKCA, and E-mark certified
Datasheet

Description

Product Overview

The ATC 3561-NA4C is a rugged edge AI computer designed for transportation, railway, and industrial environments. Powered by the NVIDIA® Jetson Orin Nano™ SOM, it delivers up to 67 TOPS of AI inference performance (8GB version in Super Mode), making it ideal for real-time applications such as ADAS, ANPR, AMR, intelligent transportation, machine learning, railway safety, and factory automation.

Key Features

High AI Performance

  • NVIDIA® Jetson Orin Nano™ SOM with up to 67 TOPS AI inference

  • Reliable performance for ADAS, AMR, machine vision, and automation tasks

Rugged and Reliable Design

  • Operates in harsh environments with a fanless thermal design

  • Wide temperature support from -25°C to 60°C

  • MIL-STD-810H certified for resistance to vibration and shock

Power and Connectivity

  • Wide input range of DC 9V to 36V with ignition control for in-vehicle and railway use

  • Four GbE PoE ports for long-distance IP cameras and LiDAR integration

  • Additional I/O including USB 3.2, isolated CAN bus, RS-232, console port, DI/DO, OTG, and HDMI®

Wireless Expansion

  • Optional 5G NR and Wi-Fi 5/6 modules

  • Connects with Cyber-Physical Systems (CPS) to support AI model retraining and improve field inference accuracy

Certifications and Compliance

  • CE/FCC Class A, UKCA, and E-mark certified

  • Built to meet transportation and industrial safety requirements

Dimensions Drawings





Download

Datasheet
User Manual
* You have to Login or Register to download this file

More Information

Brand Nexcom
Specifications

NVIDIA® Jetson Orin Nano™ SOM

  • Jetson Orin Nano™ 8GB
    - CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3
    - GPU: 1024-core NVIDIA® Ampere architecture with 32 Tensor Cores
    - Memory: 8GB 128-bit LPDDR5 102GB/s, 2133/3199MHz in frequency
    - AI performance: 40 INT8 TOPS, 67 TOPS in Super Mode

  • OpenGL 4.6, OpenGL ES 3.2, CUDA® 11.4 and Vulkan 1.1

  • 260-pin SO-DIMM form factor compatible with Orin™ NX

  • NVIDIA® JetPack 6.2

Storage/Boot Disk

  • 1 x M.2 Key M 2242 PCIe 4.0 x4 NVMe SSD, 128GB in default

Expansion

  • 1 x M.2 Key E 2230 (PCIe 4.0 + USB 2.0)

  • 1 x M.2 Key B 3042/3052 (USB 3.2/2.0) with 2 x nano-SIM slot

Display

  • 1 x HDMI® 2.0a/b, up to 3840x2160@60Hz

G-Sensor

  • 3D accelerometer and 3D gyroscope, ST LSM6DSLTR

Remote Power Trigger

  • ATX power button, wafer reserved

PoE+

  • 4 x 1GbE RJ45 port
    - 9K byte Jumbo frame, PTP (IEEE 1588) supported
    - Switching: Realtek RTL8367RBI-VH-CG-I
    - IEEE 802.11af/at PoE (30W power budget)
    - PSE on/off & Watt monitoring

USB

  • 2 x USB 3.2, Type-A
    - 5V@900mA each
    - up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)

  • 1 x OTG Micro-USB (w/ a door)

  • 1 x USB 2.0, wafer reserved

DI/DO

  • 4-Bit input, non-isolation
    - Source: DC 9V~36V ([email protected]/[email protected])
    - External: DC 0V~33V pull-high, high-level, DC 3.3V~33V; low-level, DC 0V~2V

  • 4-Bit output, non-isolation
    - Source: DC 9V~36V (nominal 35mA@24V)
    - External: DC 5V~27V pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)

  • Source or external can be selected by software (default: source type)

  • Connector: Multi-port (DB15)

Serial Port

  • 1 x COM Multi-port (DB15), supports RS-232 (Tx, Rx)
    - RS-232 working voltage ± 9V, baud rate up to 115.2kb/s

  • 1 x Console port (Tx, Rx), wafer reserved

CAN bus

  • 1 x CAN FD, compatible with CAN 2.0A/2.0B
    - IEC 61000-4-2 Electrostatic Discharge (ESD): ± 4KV/8KV (contact/air, whole system)
    - Up to 5Mb/s in data transmission
    - 2.5KV isolated
    - Connector: Multi-port (DB15)

GPS

  • Onboard u-blox NEO-M9N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou

  • Optional NEO-M9V w/ DR (dead reckoning) function

Power Supply

  • Nominal voltage: DC 9V~36V

  • Cranking voltage: DC 6V~9V (less than 20sec)

  • OCP & UVP (shut down once exceeding 37V)

  • Ignition on/off control & programmable on/off delay timer

  • Optional for remote power on/off control

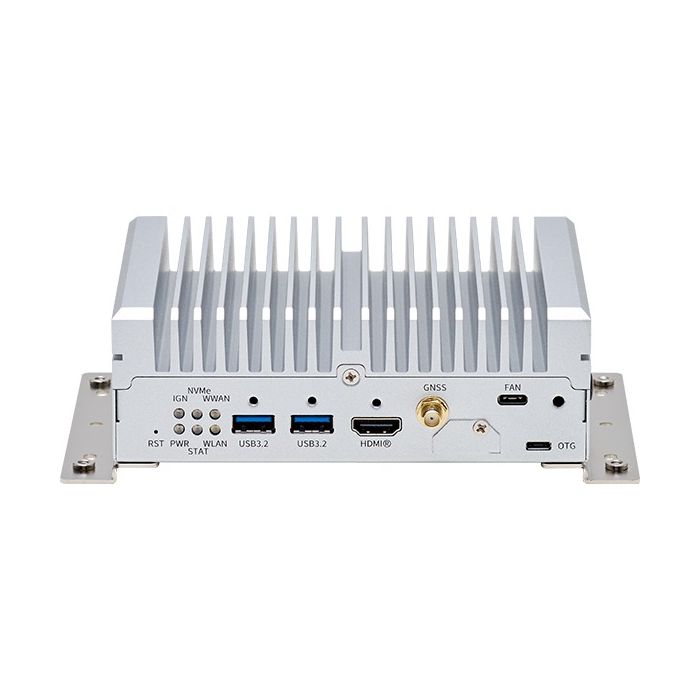

I/O Ports, Front-Plate

  • 6 x LED indicator

  • 1 x Reset button

  • 2 x nano-SIM slot, 1 x OTG

  • 1 x HDMI®

  • 2 x USB 3.2

  • 1 x Multi-port (DB15)

  • 1 x Antenna hole for GNSS (RP-SMA ant.)

I/O Ports, Rear-Plate

  • 9V~36V DC-in, terminal block

  • 4 x 1GbE RJ45 PoE port

I/O Ports, Side-Plate

  • 4 x Antenna hole for LTE/5G module (SMA ant.)

  • 2 x Antenna hole for Wi-Fi 5/6 module (PR-SMA ant.)

Dimension & Weight

  • Dimensions:
    - 179.4mm (W) x 119mm (D) x 55.6mm (H) (w/ mount bracket, fanless)
    - 179.4mm (W) x 119mm (D) x 70.1mm (H) (w/ mount bracket, w/ fan kit)

  • Weight: 1.28kg (w/o fan kit)

Environment

  • Operating temperature:
    - -25°C~60°C (fanless in Super Mode)
    - -25°C~65°C (w/ fan kit in Super Mode)
    - -25°C~65°C (fanless in Normal Mode)

  • Storage temperature: -40°C~85°C

  • Relative humidity: 10%~95% (non-condensing)

Vibration & Shock

  • Vibration in operating
    - MIL-STD-810H, 514.8C, Procedure 6, Category 4
    - IEC 60068-2-64: 2.0g@5Hz~500Hz
    - MIL-STD-810G, 514.6E, Procedure 1, Category 24, 7.7g approx.

  • Shock
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
    - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Certifications

  • CE approval, FCC Class A, UKCA, E-mark

Operating System

  • NEXCOM Acceleration Linux (NAL) w/ Jetpack 6.2 integrated
    - NEXCOM custom functions (GNSS, 5G NR, 6-axis sensor, MCU control)
    - V4L2
    - Ubuntu 22.04@Kernel 5.15

External Cable

  • Multi-port adapter cable, 20cm

Ordering Information

ATC3561-NA4C-8 (P/N: 10AT0356101X0)
Edge AI computer, NVIDIA® Jetson Orin Nano™ 8GB, Super Mode
supported, 128GB NVMe, 4 x PoE+, 1 x RS-232, 2 x USB 3.2,
DC 9V~36V input

FAN kit (P/N: 10VK00FAN03X0)
Fan kit w/ 12V fan power cable
