ATC8120-C4F AI In-Vehicle Computer with Intel Core
Intel Core Processor (Series 2) with AI Inference Accelerator for Autonomous and Machine Vision
Key Features:
- Powered by AI inference accelerator for in-vehicle applications
- Configurable for up to 600W discrete graphics card
- Built-in high-performance Intel® Core™ Processor (Series 2)
- Support up to a total of 4 PCIe 5.0/4.0 x16/x8/x4 slots for expansion
- Ultra speed M.2 Key M NVMe & 4 x 2.5” SSD for data integrity
- RAID 0/1/5/10 configurable for data security
- DC 9V~36V input with ignition control & OCP/UVP
- 4 x 2.5GbE PoE, up to PoE++ (IEEE 802.3bt) support
- Rich communication ports: 6 x USB 3.2, 2 x CAN FD, and 4 x UART
- Telemetric functionality with 2 x WWAN/5G NR, 1 x WLAN, and GNSS/DR/RTK support
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC, UKCA, and E-mark certified
Description
Product Overview

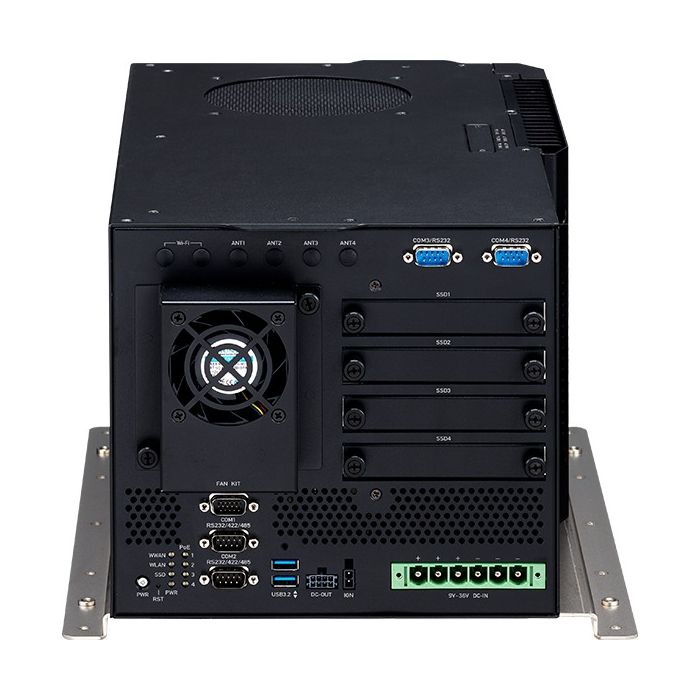

The NEXCOM ATC 8120-C4F is a high-performance AI edge computer designed for demanding in-vehicle, rail, and mobile machine-vision applications. It supports a powerful Intel Core Series 2 processor. It accommodates a large discrete GPU up to 600 W, enabling heavy AI inference, deep learning workloads, multi-camera video analytics and real-time sensor fusion. With multiple PCIe expansion slots, flexible storage options, PoE-enabled networking and vehicle-grade power design, the ATC 8120-C4F delivers the compute capability and ruggedness required for next-generation transportation and autonomous system deployments.
Key Features
High-Performance Compute and GPU Capability
-
Supports Intel Core Series 2 processors up to 65 W TDP
-
Supports a discrete GPU up to 600 W for advanced AI acceleration and high-density video analytics
-
Four PCIe expansion slots, including PCIe 5.0 x16 and multiple PCIe 4.0 lanes for GPU cards, capture cards or custom expansion
-
Designed for real-time AI inference, machine learning, ADAS, computer vision and telematics processing
Flexible Storage and Data Handling
-
One M.2 Key M NVMe slot (PCIe 4.0 x4) for high-performance SSD
-
Four 2.5-inch SATA SSD bays for bulk storage or RAID
-
Supports RAID 0, 1, 5 and 10 for performance, redundancy and data integrity
-
Ideal for continuous video recording, sensor fusion logs and onboard AI datasets
Networking and Sensor Integration
-
Four 2.5 GbE Ethernet ports with PoE capability
-
Provides power to 802.3af/at standard PoE devices and supports power management for connected devices
-
Six USB 3.2 ports for cameras, sensors and peripherals
-
Dual CAN FD and multiple serial ports for integration with vehicle systems, sensors and legacy equipment
Vehicle-Ready Power and Rugged Design
-
Wide 9 to 36 V DC power input with ignition control and electrical protection
-
Optional 5G NR, LTE, Wi-Fi and GNSS/RTK modules for positioning, telemetry and connectivity
-
Ruggedised chassis designed for shock and vibration resistance according to transportation-grade requirements
-
Suitable for buses, trucks, railways, emergency vehicles, heavy machinery and autonomous development platforms
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 8120-C4F (P/N: 10AT0812000X0)
System bare-bone, fan-kit, Intel® Core™ 7/5/3 processor, 2 x DDR5 SO-DIMM, 4 x PoE, 1 x LAN, 6 x USB 3.2, 4 x serial, 4 x PCIe slot, DC 9V~36V
