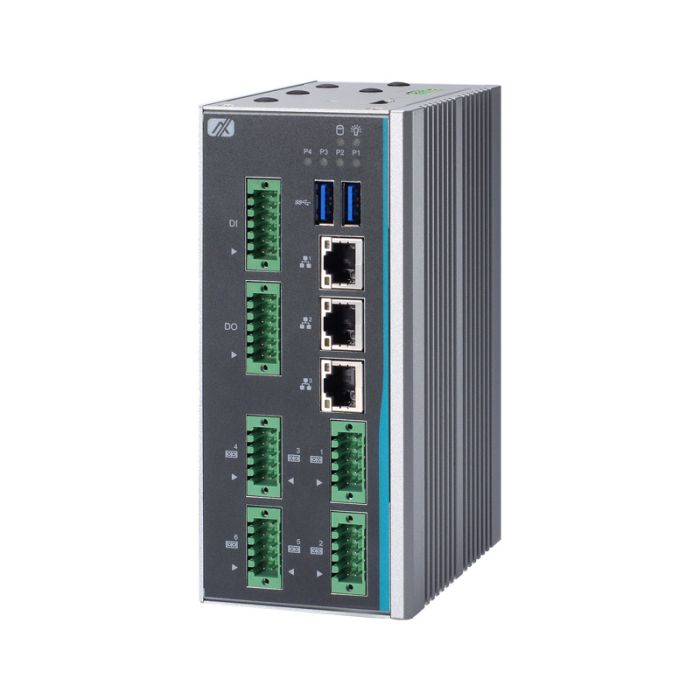

Shop ICO300-83M ATEX DIN-rail Fanless PC

SKU: ICO300-83M

ATEX/C1D2 Certified Atom® x5-E3930 Processor, Isolated COM, LAN and DIO

Datasheet

Description

The ICO300-83M combines flexible configuration & expansion design and supports a wide array of functional I/O, including six isolated RS-232/422/485 serial ports, one HDMI port, two USB 3.0 ports, three isolated Gigabit Ethernet ports, one 8-in/8-out DIO port, and five antenna openings for WLAN and WWAN.

For additional storage the IIoT gateway system comes with one mSATA occupied with a PCI Express Mini Card slot, an internal 2.5” SATA drive, and an optional eMMC on board. The ICO300-83M is compatible with Windows®10, IoT and Linux and also supports Axiomtek’s AXView software to fulfill the requirement of remote monitoring. In addition, a cold boot at -40°C is available to help eliminate issues affecting the operational reliability of the system. Trusted Platform Module 2.0 (TPM 2.0) is also available to ensure critical information security.

Cost-effective with fanless design
Intel Atom® x5-E3930 processor
6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
Wide operating temperature range from -40°C to +85°C
9 to 36 VDC, typical 12/24V power input with OVP, UVP, OCP, RPP
Supports 5G connectivity
Supports TPM 2.0
ATEX/C1D2 certified
Supports cold boot at -40°C

Download

Datasheet

More Information

Brand

Axiomtek

Specifications

CPU	Intel® Atom® x5-E3930 1.3GHz/2C/6.5W
Chipset	SoC integrated
System Memory	1 x DDR3L-1866 SO-DIMM, up to 8GB
COM	2 x Isolated RS-232/422/485 (Phoenix Type) 4 x Isolated RS-232/422/485 (4-wire, Phoenix Type)
USB	2 x USB 3.0
Ethernet	3 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® i210-IT) Isolation voltage: 1.5 kV
PoE	N/A
CANbus	N/A
Digital I/O	1 x Isolated 8-in/8-out DIO
Analog Input	N/A
Display	1 x HDMI (up to 1920 x 1200 @60Hz)
Expansion	1 x M.2 Key B 3052: USB3.0 /PCIe (for 5G module) 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB (for LTE/Wi-Fi module) 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/mSATA (for mSATA) 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card)
Storage	1 x mSATA (occupied 1 x PCI Express Mini Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) 1 x eMMC on board (optional)
Others	TPM 2.0 3 x Antenna opening
Power Supply	1 x Terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Extruded aluminum and heavy-duty steel, IP30
Operating Temperature	-40°C to +75°C (-40°F to +167°F) Cold boot at -40°C Supports +85°C operating temperature under condition
Relative Humidity	0% to 95%
Vibration	3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions (W x D x H)	66 x 110 x 155 mm (2.48" x 4.33" x 6.1")
Weight (net/gross)	1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications	CE (Class A), FCC (Class A) ATEX/C1D2
EOS Support	Windows® 10 IoT, Linux
Software Support	AMS.AXView
Mounting	DIN-rail Wall Mounting
