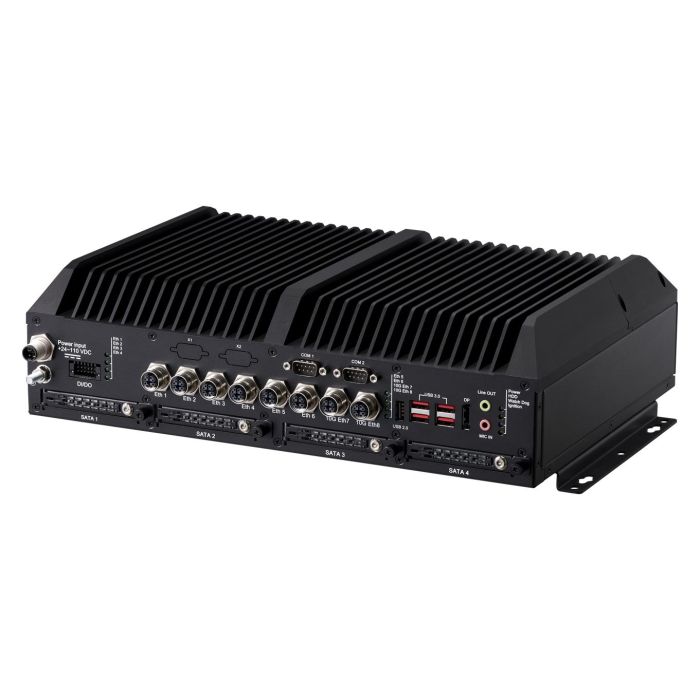

AVA-7200 Fanless Railway Edge AI Computer with NVIDIA MXM

Product Overview

The ADLINK AVA-7200 is a fanless, scalable railway edge AI platform designed for AI-enabled video analytics, onboard surveillance, train-to-ground applications and smart railway operations. Powered by 13th Gen Intel Core mobile processors with NVIDIA Ampere GPGPU options, including RTX A2000 and RTX A4500 configurations, it provides high-performance AI processing in a rugged rail-grade enclosure. With EN 50155:2021 certification, wide range isolated DC input, M12 high-speed Ethernet, multiple storage options and internal wireless expansion, the AVA-7200 is suited to demanding onboard and wayside railway deployments.

Key Features

Railway Edge AI Platform

• EN 50155:2021 certified for railway applications

• Fanless rugged design for onboard and wayside deployment

• Designed for AI-enabled video analytics and real-time image processing

• Suitable for smart railway safety, surveillance and operational monitoring

• Conformal coating options support long-term reliability in harsh environments

Intel and NVIDIA Processing Options

• 13th Gen Intel Raptor Lake mobile processor platform

• Intel Core i5-13600HRE and Intel Core i7-13800HRE configurations available

• NVIDIA Ampere GPGPU options, including RTX A2000 and RTX A4500

• DDR5 memory configurations up to 64 GB

• Available with or without GPGPU, depending on deployment requirements

High Speed Railway Networking

• 8 x 10GbE/2.5GbE M12 X-coded Ethernet ports

• Rugged M12 connectors for railway and vehicle environments

• Designed for multi-camera video streams and high-bandwidth data transfer

• Suitable for onboard IP camera, sensor and network aggregation applications

Storage and Expansion

• 4 x SATA storage support for local video and data storage

• 1 x NVMe M.2 slot for high-speed storage expansion

• 1 x M.2 slot for 5G module expansion

• 2 x SIM slots for cellular connectivity

• 1 x M.2 slot for WiFi and Bluetooth expansion

• 1 x Mini PCIe slot for additional expansion requirements

Industrial I/O Connectivity

• 5 x USB ports for peripherals and service access

• 4 x digital input and digital output channels

• 2 x serial ports for industrial communication

• Audio interface support

• DisplayPort output for local display connection

Wide Range Railway Power Input

• Isolated DC 24 V to 110 V input on 200 W configurations

• Isolated DC 72 V to 110 V input on 300 W configurations

• Power input configurable by BOM

• Ignition support available

• Designed for railway onboard power environments

Rugged Environmental Support

• Operating temperature from -25°C to 55°C for OT1, ST1 configurations

• Operating temperature from -25°C to 70°C for OT3, ST1 configurations

• Fanless passive cooling design

• IP20 ingress protection

• Designed for demanding rolling stock and rail infrastructure environments

Applications and Use Cases

The AVA-7200 is suitable for:

• AI-enabled railway video analytics

• Onboard video security and surveillance

• Train station surveillance systems

• Real-time obstacle detection

• Railroad hazard and intrusion detection

• Passenger information and safety systems

• Train to ground communication and data processing

• Specialised rail inspection vehicles



Dimensions/Drawings
