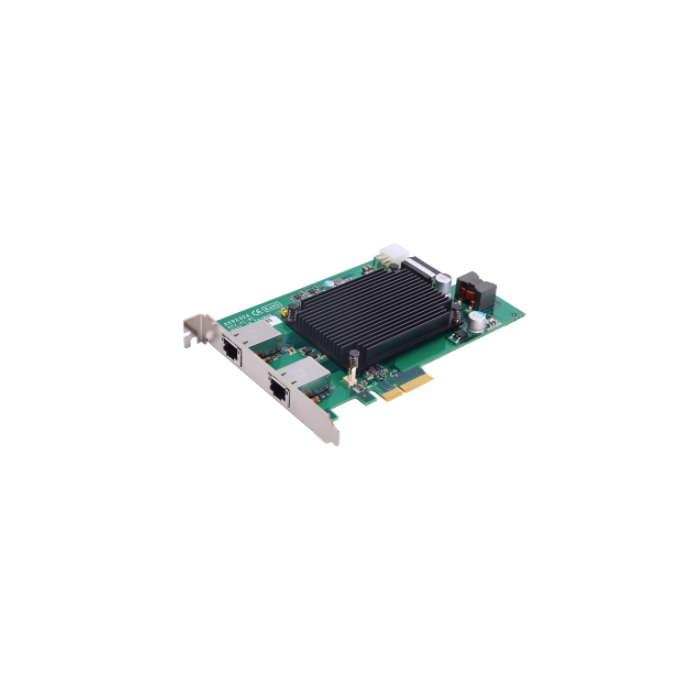

SKU: AX92324 - 2-port 10GbE PoE PCI Express Card

2-port 10GbE PoE PCI Express Card

Datasheet

Description

Intel® Ethernet Controller X550-AT2, up to 10 Gbps data rate

Supports 15.5KB Jumbo Frame and IEEE 1588

Compliant with IEEE802.3at to deliver 25.5W per port

PCI Express x4 compliant

PoE power on/off via Power Manager software and API

Operating temperature range from 0°C to 55°C

Data sheet

Specifications

Bus Type	PCI Express x4
Connector	2 GbE LANs with Intel® X550-AT2 controller; supports 15.5KB jumbo frame and IEEE 1588 IEEE 802.3at compliant; each port delivers up to 30W at 54 VDC 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps (*Linux only)
Power Connector	6-pin ATX power connector
Power Requirements	Power from PCIe slot (max. 20W PoE power output) 2.1A @ +12V 1.2A @ +3.3V Power from ATX power connector (max. 60W PoE power output) 6A @ +12V or 3A @ +24V 1.2A @ +3.3V (from PCIe slot)
Operating Temperature	0°C to +55°C (+32°F to +131°F) (with air flow)
Relative Humidity	10% to 95%, non-condensing
Dimensions	168 x 111 mm
Certifications	CE
Software	N/A
OS	Windows® 7/10, Linux
