SKU: BATGM-7-60-24-58

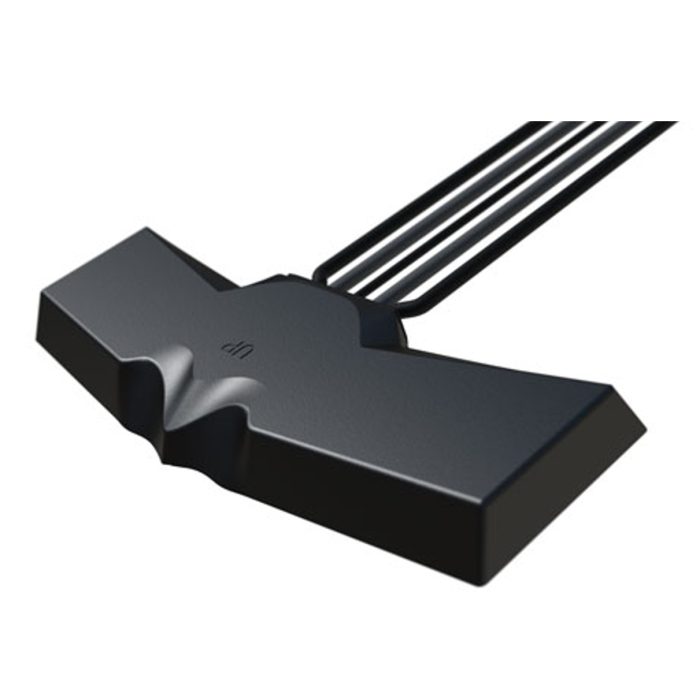

Dash Mount GPS/GNSS, WiFi + MiMo 5G/4G/3G/2G Antenna

Datasheet

Description

Mount on or under dashboard
MiMo 5G & 4G/3G functionality
2x2 Wifi
GPS/GNSS 26dB LNA

Download

Datasheet

More Information

Brand

Panorama Antennas

Specifications

Application Frequency
LTE Band	4G/5G
Electrical Data
LTE Frequencies	617-960/1427-6000MHz
Global Positioning	GPS/GNSS
Wifi Frequencies	2.4/5.0-7.2GHz
Typical VSWR	<2.5:1
WiFi MiMo	Optional 2x2; 2x2
Max Input Power (W)	20
Pattern	Omni-directional
Global Positioning Data
LNA Gain (dB)	26
Mechanical Data
Available Colours	Black
Length (mm)	214
Width (mm)	77
Height (mm)	16.5
Operating Temperature	-30 / + 70°C
Mounting Data
Mounting Method	Adhesive Pad
Approvals Data
Flame Retardancy	UN ECE 118 Compliant
Industry Approvals	E11
