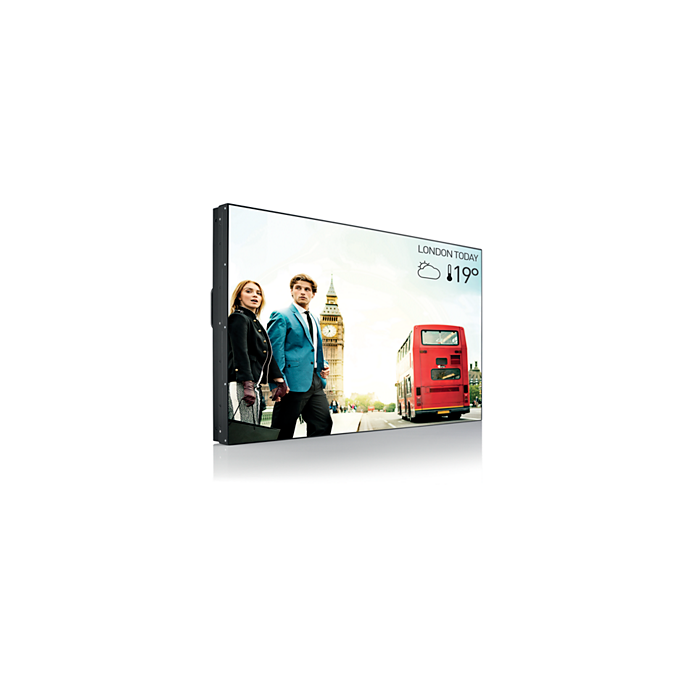

BDL5588XH 55" Full HD Video Wall Display

Connectivity

Video input

• Component (RCA)
• Composite (RCA)
• DVI-D
• HDMI (x2)
• VGA (Analog D-Sub)
• DisplayPort (1.2)

Video output

• DisplayPort
• DVI-I
• VGA (via DVI-I)

Audio input

• 3.5 mm jack
• Audio Left/Right (RCA)

Audio output

• Audio Left/Right (RCA)
• External speaker connector

External control

• IR (in/out) 3.5 mm jack
• RJ45
• RS232C (in/out) 2.5 mm jack

Other connections

OPS

Convenience

Signal Loop Through

• RS232
• VGA
• DisplayPort
• DVI
• IR Loopthrough

Ease of installation

Carrying Handles

Energy saving functions

• Ambient light sensor
• Smart Power

Network controllable

• RS232
• RJ45
• Card OPS RS232
• One Wire (HDMI-CEC)

Placement

• Portrait
• Landscape

Screen saving functions

Pixel Shift, Low Bright

Tiled Matrix

Up to 10 x 10

Dimensions

Bezel thickness

3.5 mm A-to-A

Bezel width

Top/Left: 2.3mm, Bottom/Right: 1.2mm

Set Width

1213.4  mm

Set Height

684.2  mm

Set Depth

103.35  mm

Product weight

29.2  kg

VESA Mount

400 x 400 mm

Operating conditions

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Altitude

0 ~ 3000 m

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Power

Consumption (On mode)

175 W (EnergyStar 6.0 test method)

Standby power consumption

<0.5W

Sound

Built-in speakers

2 x 10W (RMS)

Accessories

Included accessories

• Remote Control
• Batteries for remote control
• AC Power Cord
• VGA cable
• RS232 cable
• User manual on CD-ROM
• Quick start guide
• Edge alignment pins
• Edge alignment plates

Optional accessories

• Edge finishing kit
• ColourCalibrationKit (CCK4602)

Miscellaneous

On-Screen Display Languages

• Arabic
• Simplified Chinese
• Traditional Chinese
• English
• French
• German
• Italian
• Japanese
• Polish
• Russian
• Spanish
• Turkish

Regulatory approvals

• CE
• UL/cUL
• CB
• GOST
• EPEAT
• FCC, Class B

Warranty

3 year warranty
