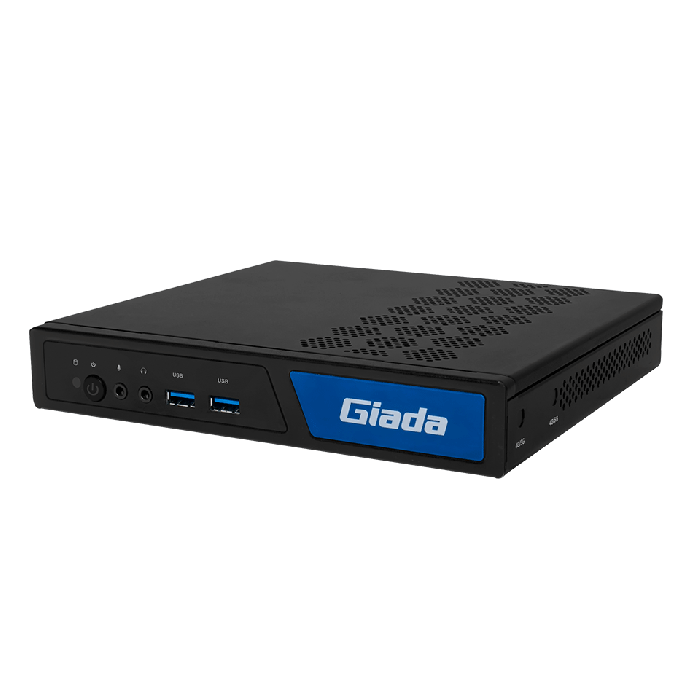

BQ614 14/13th Gen High-End Media Player
Intel LGA1700 Socket 12th/13th/14th Gen. processors
Key Features:
- Intel LGA1700 12th/13th/14th Gen. CPU
- 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- 1 x DP1.4, Optional: 1 x VGA
- 1 x DP1.4 from Type-C
- RTC
- Watchdog Timer
- Chassis Intrusion
- Support NVMe SSD
Description
The BQ614 adopts Intel® B760 chipset, it can support Intel® 12th/13th/14th generation socket-type processors. It supports dual-channel DDR5 memory and it is flexible to extend the NVMe SSD and 1 x SATAIII storage.
With Intel® UHD Graphics 770, 750 or 730, BQ614 supports 3 displays. Two of the displays are an HDMI 2.0a (4096x2304@60Hz) a DisplayPort 1.4 (7680x4320 @60Hz), or an optional VGA port (2048 x 1536@60Hz). Besides, its USB type-C port provides a DP1.4 signal supporting up to 8K resolution.

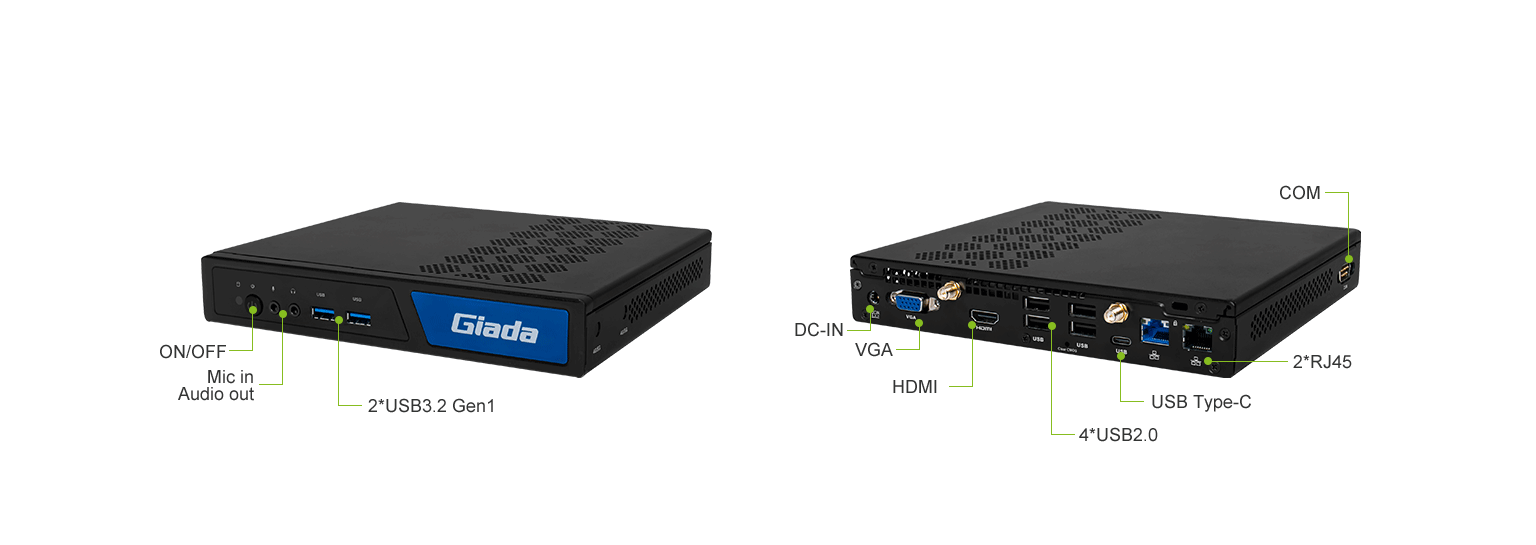

The PC measures only 1.24L, yet supports rich I/O ports, including 6 x USB Type-A and dual LAN ports. With a micro switch, it can detect the removal of the computer cover. Once the chassis is opened, the BIOS will record (won't alarm) and warn you the next time when the system starts up.
Download
More Information
| Brand | Giada Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
