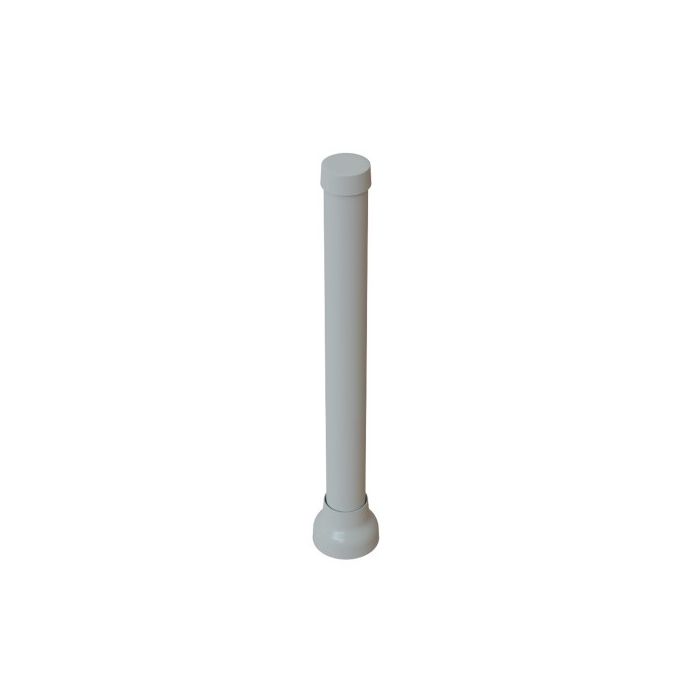

BSM-6-60-5SP - MiMo 4G/5G Omni Antenna

Out of stock
Brand: Panorama Antennas

Internal/External Omni MIMO Broadband Antenna for 4G/5G devices, 617-960/1427-6000MHz


Enquire Now
Enquire about this product

The BS[G]M-6-60 antenna is a MiMo omnidirectional broadband antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz suitable for external or internal installation. The mounting bracket allows uncomplicated wall mounting utilising the supplied screws and wall plugs and mast/rail mounting using the supplied clamps. The omnidirectional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications.

N-Type on 0.5m cables or SMA-M on 5m cables

Key Features:

  • 2x2 MiMo 4G/5G antenna solution
  • Wall, rail, or mast mount
  • Optional GPS/GNSS - 26dB LNA
  • Integrated coaxial cables

This product is listed in Panorama Antennas, Antennas
Application Frequency
LTE Band 2G,3G,4G,5G
Electrical Data
Global Positioning Optional GPS / GNSS 1562-1612
Typical VSWR <2.5:1
Peak Gain (dBi) 5
LTE MiMo 2x2
Max Input Power (W) 10
Pattern Omni-directional
Global Positioning Data
Frequency Range (MHz) 617-960 / 1427-6000
LNA Gain (dB) 26dB
Mechanical Data
Available Colours White
Connector SMA (m); N(f); Fakra C Jack; Fakra D Jack
Mounting Data
Mounting Type Wall Mount; Mast Mount; Panel Mount; Rail Mount
Approvals Data
IP Rating IP67
