Shop CAPA310 3.5� Embedded SBC Atom x5-E3940

SKU: CAPA310HGGA-E3940-ZIO

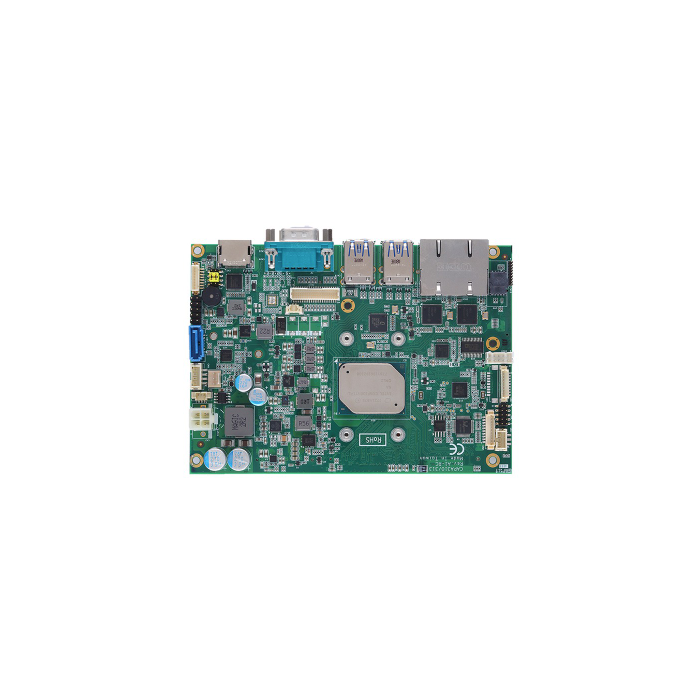

3.5” Embedded SBC with Intel® Atom® x5-E3940 Processor, LVDS, HDMI, 2 GbE LANs and Audio

Datasheet

Description

Intel® Atom® x5-E3940 processor

1 DDR3L SO-DIMM for up to 8GB of memory

2 USB 2.0 and 4 USB 3.0

1 PCI Express Mini Card slot

ZIO connector

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Atom® x5-E3940 processor onboard
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 1 x RS-232
USB	2 x USB 2.0 4 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT);
Display	1 x HDMI 1 x LVDS 1 x VGA (optional)
Digital I/O	8-channel in/out programmed
Audio	MIC-in/Line-in/Line out
Storage	1 x mSATA 1 x SATA-600
Expansion	1 x Full-size PCI Express Mini Card slot 1 x USB, 1x PCIe x1, 1x LPC, 1 x SMBus through a ZIO connector
Others	ST ST33HTPH2E32AHA6 with TPM 2.0 compliant (optional) 1 x I2C
Battery	Lithium 3V/220mAH
Power Input	2 x 2 pin connector +12V to 24 VDC-in AT Auto Power On function supported
Power Requirements	Intel® Atom® x5-E3940 @1.6GHz 8GB DDR3L Max. RMS: +24V @0.8A
Watchdog Timer	65536 levels, 1 to 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	-40°C to +80°C (-40°F to 185°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
