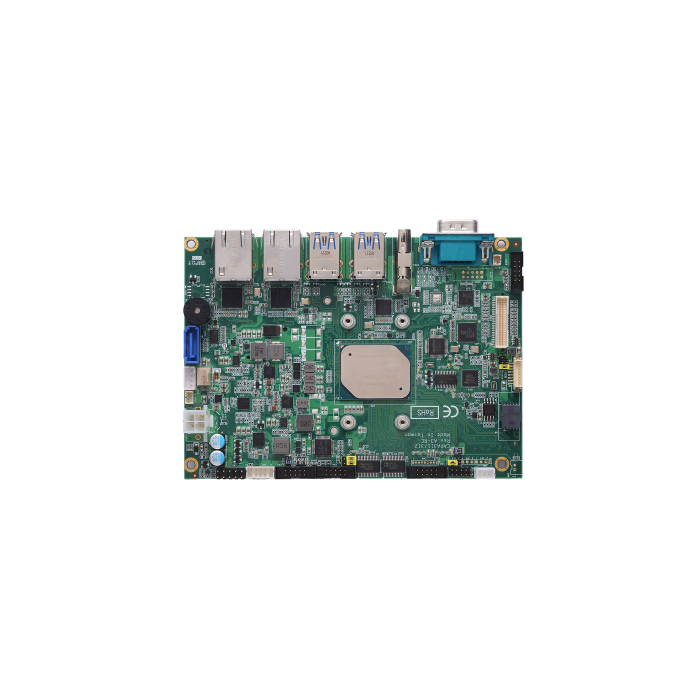

CAPA311 3.5" Embedded SBC Atom x5-E3940, HDMI, LVDS, 2 GbE LAN
CAPA311 3.5" Embedded SBC Atom x5-E3940, HDMI, LVDS, 2 GbE LAN
3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio
Description
Intel® Atom® x5-E3940 processor
1 DDR3L SO-DIMM for up to 8GB of memory
2 USB 2.0 and 4 USB 3.0
2 full-size PCI Express Mini Card slots
More Information
|
Brand |
Axiomtek |
|
Specifications |
| CPU |
- Intel® Atom® x5-E3940 processor onboard
|
| Chipset |
|
| System Memory |
- 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
|
| BIOS |
|
| COM |
- 2 x RS-232/422/485
- 2 x RS-232
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps Ethernet with Intel® i211-AT
|
| Display |
- 1 x HDMI
- 1 x LVDS
- 1 x VGA (optional)
- 1 x eDP (optional)
|
| Digital I/O |
- 8-channel in/out programmable
|
| Audio |
|
| Storage |
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot with mSATA supported
- 1 x Full-size PCI Express Mini Card slot
- 1 x SIM slot
|
| Others |
- ST ST33TPM12LPC with TPM 1.2 compliant
- SMBus; compatible with I2C
|
| Battery |
|
| Power Input |
- 2 x 2-pin connector
- +12V DC-in only
- AT Auto Power On function supported
|
| Power Requirements |
- Intel® Atom® x5-E3940 @1.6GHz 8GB DDR3L, max. RMS: +12V @1.1A
|
| Watchdog Timer |
- 65536 levels, 1 to 65535 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- -40°C to +80°C (-40°F to +185°F)
|
| Relative Humidity |
- 10% - 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
