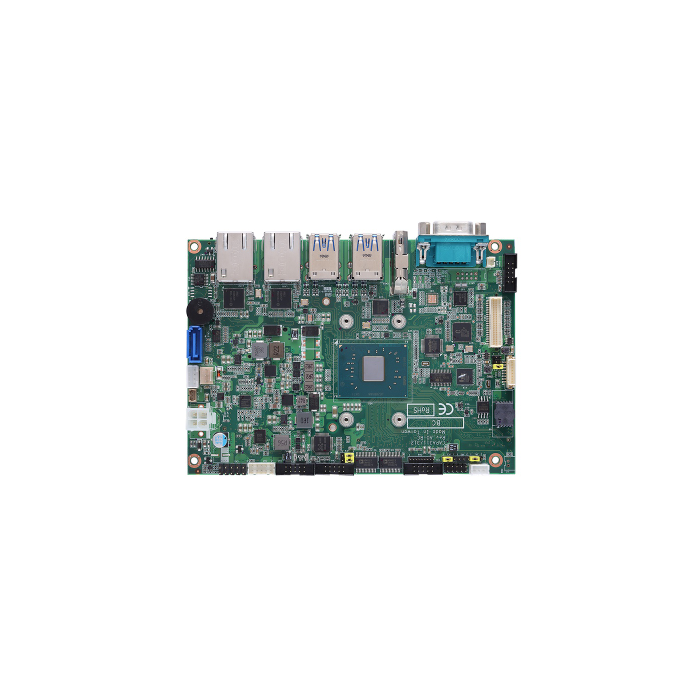

CAPA312 3.5" Embedded SBC Pentium/Celeron, HDMI/LVDS, Dual GbE LAN

In stock
SKU:
CAPA312
Brand: Axiomtek

Category: Single Board Computers

3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, HDMI/LVDS, Dual LANs and Audio


Enquire Now
Enquire about this product:

Intel® Pentium® processor N4200/Celeron® processor N3350

1 DDR3L SO-DIMM, up to 8GB

2 USB 2.0 and 4 USB 3.0 ports

2 PCI Express Mini Card slots


This product is listed in Digital Signage, Industrial Automation, Mining, Transport, Axiomtek, Embedded Boards
CPU
  • Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x LVDS
  • 1 x HDMI
  • 1 x VGA (optional)
  • 1 x eDP (optional)
Digital I/O
  • 8 Channels IN/OUT programmed
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x SATA-600
Expansion
  • 1 x Full-Size PCI Express Mini Card with mSATA
  • 1 x Full-Size PCI Express Mini Card
  • 1 x SIM slot
Others
  • TPM 1.2
  • I2C
  • SMBus
Battery
  • Lithium 3 V/220 mAH
Power Input
  • 2 x 2-pin cinnector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L
    Max. RMS. +12V @ 1.5A
  • Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L
    Max. RMS. +12V @ 1.2A
Watchdog Timer
  • 1 ~ 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • Standard: -20°C ~ +60°C (-4°F ~ +140°F)
  • Optional: -20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
