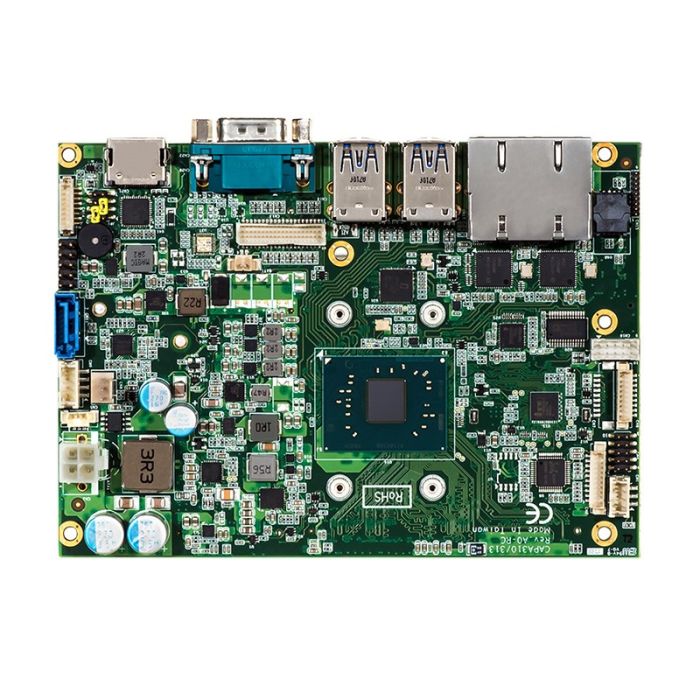

CAPA313 - Pentium N4200/Celeron N3350

In stock
SKU:
CAPA313HGGA-N4200-ZIO, CAPA313HGGA-N3350-ZIO
Brand: Axiomtek

Category: Single Board Computers

3.5” Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, LVDS, HDMI, 2 GbE LANs and Audio

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

The CAPA313 from Axiomtek is based on an Intel® Pentium® processor N4200 or Intel® Celeron® N3350 (codename: Apollo Lake). This 3.5" board is designed for operational stability in harsh environments including a wide operating temperature range from -20°C to +70°C. It also allows wide range DC input of 12V to 24 for various industrial environments. Providing rich I/O connectors, stunning graphical performance and an emphasis on expandability. The CAPA313 has one PCI Expess Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connection and comes with one RS-232/422/485, one RS-232, two USB 2.0, four USB 3.0, eight-channel digital I/O, audio, LVDS, HDMI, VGA (optional) and dual Gigabit LANs with Intel® i211AT Ethernet controller. It also features one SATA-600 socket and one mSATA interface for storage devices. To ensure reliable operation, the 3.5” embedded SBC supports watchdog timer and hardware monitoring features.



Intel® Pentium® processor N4200/Celeron® processor N3350

1 DDR3L SO-DIMM for up to 8GB of memory

2 USB 2.0 and 4 USB 3.0

1 PCI Express Mini Card slot

ZIO connector

Single board computers, Industrial computers

CPU
  • Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT)
Display
  • 1 x HDMI
  • 1 x LVDS
  • 1 x VGA (optional)
Digital I/O
  • 8-channel in/out programmable
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x USB, 1 x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector
Others
  • ST ST33HTPH2E32AHA6 with TPM 2.0 compliant (optional
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V to 24V DC-in
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @1.1 GHz 8GB DDR3L
  • Max. RMS: +24V @ 0.8A
  • Intel® Celeron® N3350 @1.1 GHz 8GB DDR3L
  • Max. RMS: +24V @ 0.7A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
