SKU: CAPA315

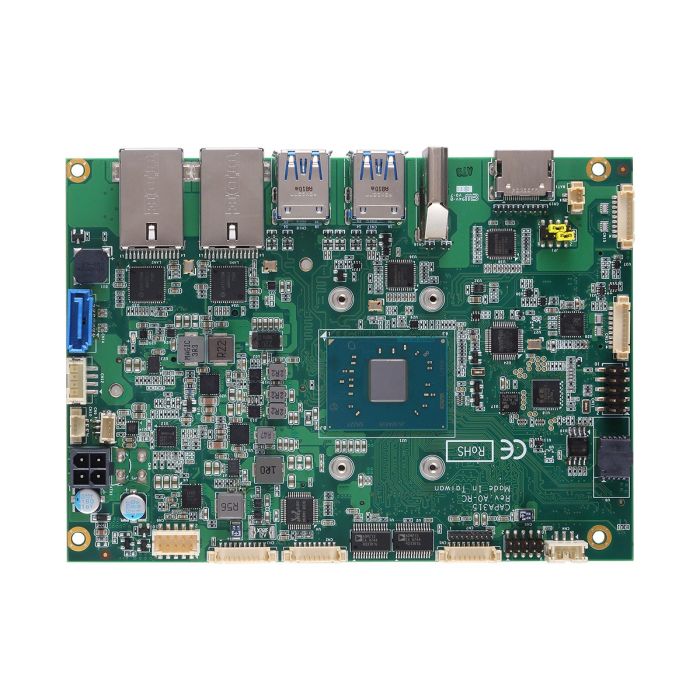

3.5” Embedded SBC with Intel® Pentium® N4200 & Celeron® Processor N3350, eDP, 2 HDMI, 2 GbE LANs and Audio

Datasheet

Description

Intel® Pentium® N4200/Celeron® N3350 processor

1 DDR3L SO-DIMM for up to 8GB of memory

2 USB 2.0 and 4 USB 3.0

2 HDMI and 1 eDP

1 PCI Express Mini Card slot

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 3 x RS-232
USB	2 x USB 2.0 4 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT)
Display	2 x HDMI 1 x eDP
Digital I/O	8-channel in/out programmed
Audio	MIC-in/Line-in/Line out
Storage	1 x SATA-600 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot
Others	TPM 1.2 (optional)
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin DC in power connector +12V DC-in only AT Auto Power On function supported
Power Requirements	Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L Max. RMS: +12V @ 1.5A Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L Max. RMS: +12V @ 1.2A
Watchdog Timer	65536 levels, 1 to 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	-20 to +70°C (-4°F to +158°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
