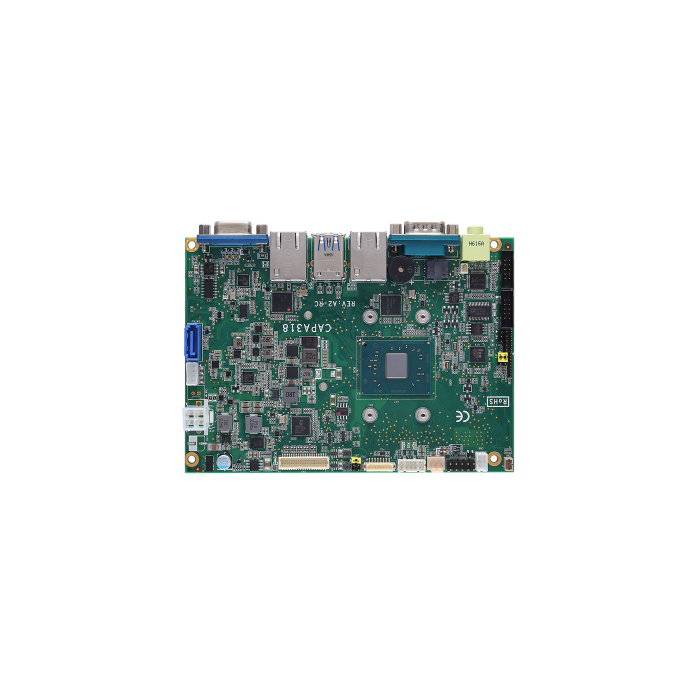

Shop CAPA318 3.5" Embedded SBC

SKU: CAPA318

3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, VGA/LVDS, Dual LANs and Audio

Datasheet

Description

Intel® Pentium® processor N4200/Celeron® processor N3350

1 DDR3L SO-DIMM, up to 8GB

2 USB 2.0 and 2 USB 3.0 ports

PCI Express Mini Card with mSATA supported

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS	AMI
COM	2 x RS-232
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x VGA 1 x LVDS
Digital I/O	8 channels IN/OUT programmed
Audio	MIC-in/Line-in/Line-out
Storage	1 x SATA-600
Expansion	1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card 1 x SIM slot
Others	I2C Bus for advanced monitoring/control
Battery	Lithium 3 V/220 mAH
Power Input	2 x 2-pin connector +12V DC-in only AT Auto Power On function supported
Power Requirements	Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L Max. RMS. +12V @ 1.5A Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L Max. RMS. +12V @ 1.3A
Watchdog Timer	65535 levels, 1~65535 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C ~ +70°C (-4°F ~ 158°F)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
