CAPA520 - 9th gen series CPU SBC
Brand: Axiomtek

Category: Single Board Computers

3.5” Embedded SBC with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

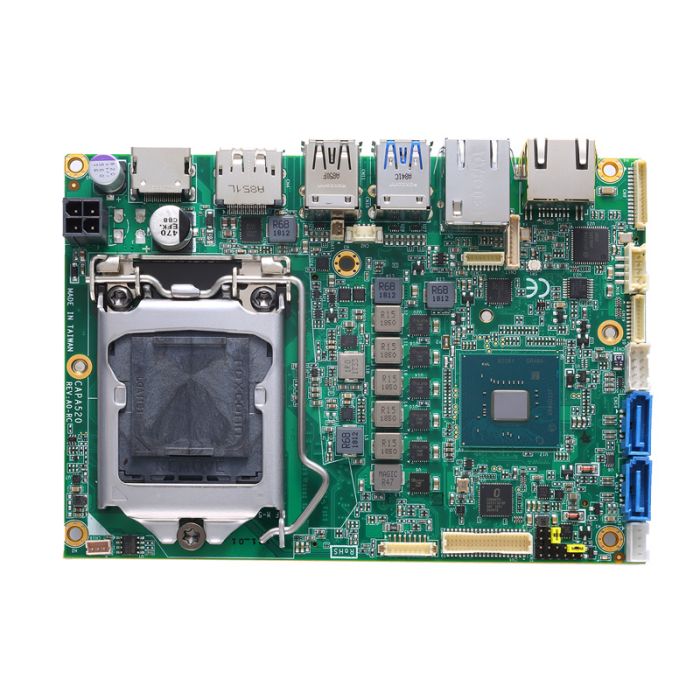

CAPA520 is powered by the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors with Intel® H310 chipset (Q370 optional). The industrial-grade CAPA520 is size 146 mm x 104 mm and features triple-display capability through HDMI, LVDS and DisplayPort interfaces, enabling multi-display applications in a limited space. With rich I/O connectivity and great expansions, the highly integrated CAPA520 was designed to shorten the time to market and reduce development costs. It delivers powerful 3D and 4K graphics through the integrated Intel® UHD Graphics 630. Moreover, it can operate in a wide temperature range from -20°C to 60°C. To ensure reliable and stable operation, this 3.5-inch embedded SBC supports the Intel® AMT 12 for easy remote management and monitoring and has hardware monitoring function to monitor CPU/system temperature, voltage and fan speed. The CAPA520 is optimized for various industrial IoT-related applications in the embedded market, such as industrial control, machine vision, self-service terminal, digital signage, and medical imaging.


LGA1151 socket 9th/8th gen Intel® CoreTM i7/i5/i3 processor

Intel® H310 chipset (Q370 optional)

1 DDR4 SO-DIMM for up to 16GB of memory


1 PCI Express Mini Card slot

Intel® AMT 11 supported (optional)

Single board computers, Industrial computers

  • LGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (TDP 35W)
  • Intel® H310
  • Intel® Q370 (optional)
System Memory
  • 1 x 260-pin DDR4-2666 SO-DIMM, up to 16GB
  • AMI
  • 1 x RS-232/422/485
  • 3 x USB 3.0
  • 3 x USB 2.0
  • 1 x 10/100/1000 Mbps (Intel® i211-AT)
  • 1 x 10/100/1000 Mbps ( Intel® i219-LM)
  • 1 x 10/100/1000 Mbps (Intel® i211-AT; optional)
  • 1 x HDMI
  • 1 x LVDS; 18/24-bit single/dual channel
  • 1 x DisplayPort
Digital I/O
  • 8-channel in/out programmed
  • HD Audio link
  • 2 x SATA-600
  • 1 x mSATA (optional)
  • 1 x PCI Express Mini Card slot with mSATA supported
  • 1 x USB, 1x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector
  • SMBus
  • Lithium 3V/220 mAh
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • N/A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to 140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
  • CE


We build to order
