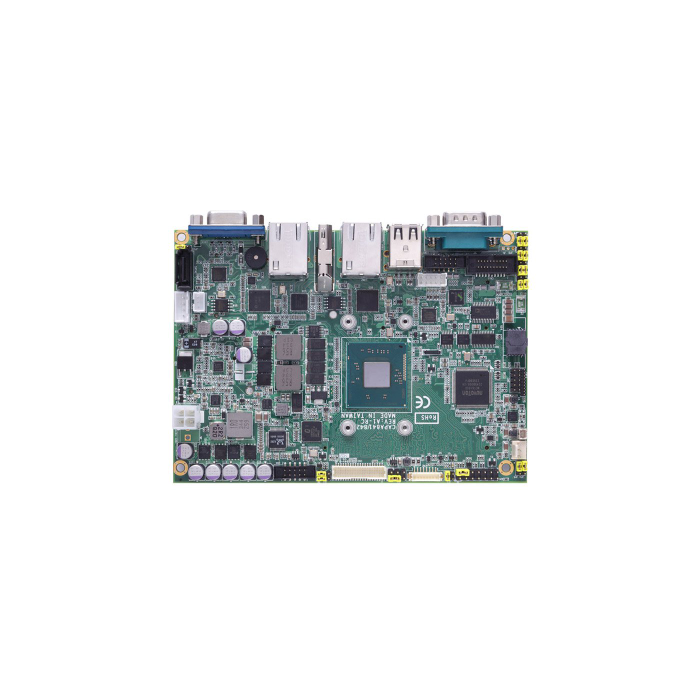

Shop CAPA842 3.5" Embedded SBC

SKU: CAPA842VHGGA

3.5" Embedded SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio

Datasheet

Description

Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)

1 DDR3L-1333 SO-DIMM, up to 8GB

4 USB 2.0 ports

4 COM ports

2 PCI Express Mini Card slots and 1 SIM slot

2 Gigabit Ethernet ports

LVDS/VGA/HDMI with dual-view supported

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Celeron® processor J1900 quad core or N2807 dual core onboard (Bay Trail)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 with +5V/+12V powered 2 x RS-232 with +5V/+12V powered
USB	4 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x VGA 1 x LVDS 1 x HDMI
Digital I/O	8-IN/OUT
Audio	MIC-in/Line-in/Line-out/Speaker out
Storage	1 x CFast™ 1 x SATA-300
Expansion	1 x Full-size PCI Express Mini Card w/mSATA 1 x Half-size PCI Express Mini Card 1 x SIM slot
Others	SMbus TPM 1.2
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin connector +12V DC-in only AT Auto Power On function supported
Power Requirements	Intel® Celeron® J1900 @ 2 GHz, 8GB DDR3L Max. RMS: +12V @ 1.41A Intel® Celeron® N2807 @ 1.58 GHz, 8GB DDR3L Max. RMS: +12V @ 0.64A
Watchdog Timer	255 levels, 1 ~ 255 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
