CAPA843 - Celeron J1900 CPU
Brand: Axiomtek

Category: Single Board Computers

3.5" Embedded SBC with Intel® Celeron® J1900 Processor, LVDS/VGA/HDMI, Dual LANs, Audio and ZIO

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

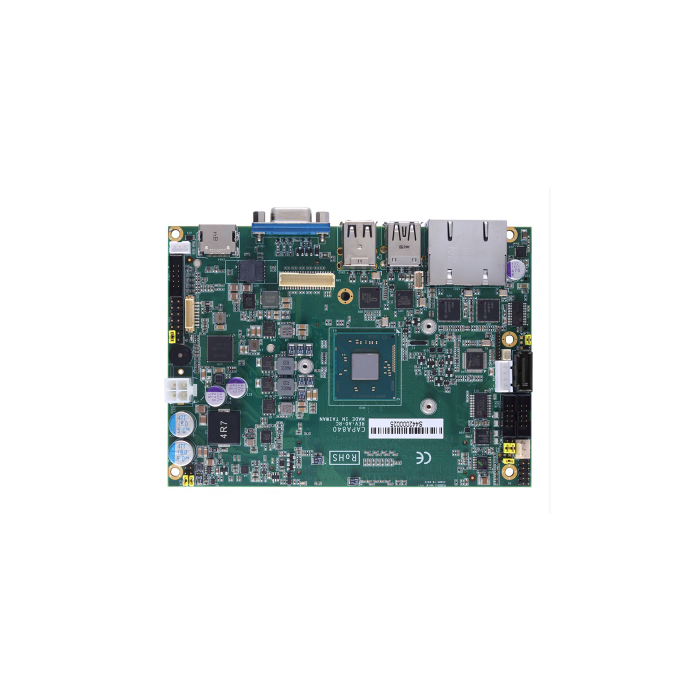

The CAPA843 is a fanless 3.5-inch embedded board featuring quad-core Intel® Celeron® J1900 SoC (codename: Bay Trail). 2 x SO-DIMM sockets supports up to 8GB of DDR3L 1066/1333MHz RAM. The compact size embedded board was designed with emphasis on expandability, offering two full-size PCI Express Mini Card slots, as well as an exclusive Axiomtek ZIO connector. The compact 146 x 102mm embedded SBC can handle operating temperatures from -20°C to 70°C, and runs on +10V ~ +24V DC input. The 3.5” fanless embedded board provides three display interfaces with dual-display operation: HDMI, LVDS and VGA. The CAPA843 is an excellent choice for applications in IoT/M2M-related, industrial control, self-serve terminal, gaming, digital signage, POS, and kiosk.



Single board computers, Industrial computers

CPU
  • Intel® Celeron® processor J1900 onboard
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 with +5V/+12V powered
  • 1 x RS-232
USB
  • 4 x USB 2.0
  • 1 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • 8 channels IN/OUT programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x mSATA
  • 1 x SATA-300
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x Full-size PCI Express Mini Card slot (USB only)
  • 1 x USB, 1 x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO
Others
  • TPM 1.2
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +10V ~ 24V DC-in
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @2.0 GHz, 8 GB DDR3L
    Max. RMS: +24V @ 0.5A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
