Shop CAPA84R 3.5� Embedded SBC Celeron

SKU: CAPA84R

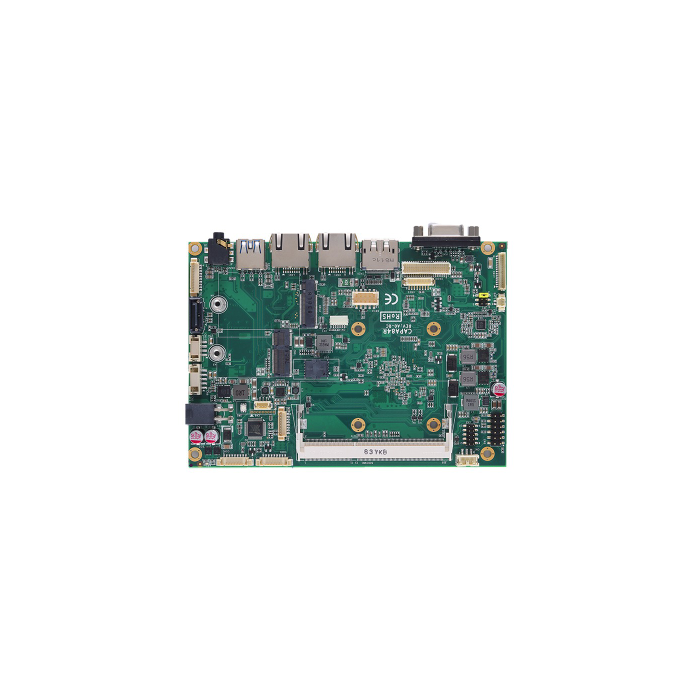

3.5” Embedded SBC with Intel® Celeron® Processor J1900/J1800, DisplayPort, LVDS, VGA, 3 GbE LAN and Audio

Datasheet

Description

Intel® Celeron® processor J1900/J1800

1 DDR3L SO-DIMM for up to 8GB of memory

2 USB 2.0 and 1 USB 3.0

3 GbE LAN

M.2 Key E

M.2 Key B

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Celeron® processor J1900/J1800 onboard
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1333 SO-DIMM, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 1 x RS-232
USB	2 x USB 2.0 1 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT) 1 x 10/100/1000 Mbps (Intel® i211-AT) (optional)
Display	1 x DisplayPort 1 x LVDS 1 x VGA
Digital I/O	8-channel in/out programmed
Audio	MIC-in/Line-in/Line out
Storage	1 x M.2 KEY B (SATA, USB 2.0) in 22 x 42 or 30 x 42 1 x SATA-300
Expansion	1 x M.2 KEY E (PCIe x1) in 22 x 30
Others	SMBus
Battery	Lithium 3V/220Mah
Power Input	2 x 2 pin connector +12 VDC-in AT Auto Power On function supported
Power Requirements	Intel® Celeron® J1900 @ 2 GHz 8GB DDR3L Max RMS: +12V @ 1.26A Intel® Celeron® J1800 @ 2.41 GHz 8GB DDR3L Max RMS: +12V @ 1.2A
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C to +70°C (-4°F to 158°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
