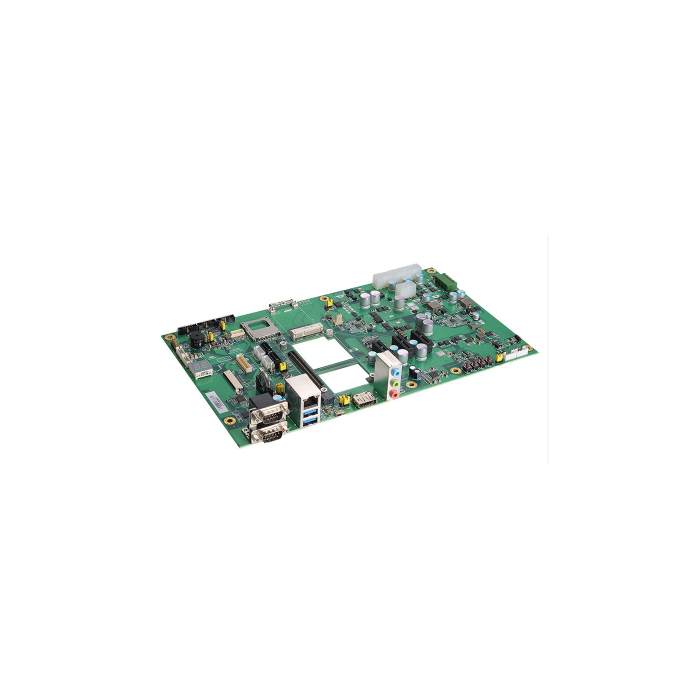

CEB94017 - Development Baseboard
Brand: Axiomtek

Category: Single Board Computers

COM Express Type 10 Development Baseboard

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

COM Express Type 10 baseboard

2 SATA-300 and SD card slot

1 PCI Express Mini Card slot

5 USB 2.0 and 2 USB 3.0

Port 80 display for debugging

Single board computers, Industrial computers

CPU
  • On the module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
Serial
  • 2 x TX/RX
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0 (wafer connector)
  • 2 x USB 3.0
  • 1 x micro USB (USB 2.0)
Ethernet
  • 1 x 10/100/1000 Mbps
Display
  • 1 x DisplayPort
  • 1 x 40-pin LVDS / 1 x 8-pin inverter connector
  • 1 x eDP
  • 1 x jumper for LVDS panel 3.3V/5V/12V voltage selection
  • 1 x jumper selection LVDS/eDP
GPIO
  • 4-CH in & 4-CH out
Audio
  • 1 x Audio jack
Storage
  • 2 x SATA
  • 1 x SD card slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 3 x PCIe x1
Others
  • Port 80 Display Dual 7 segments port 80 display for convenient debugging purpose through LPC interface
Battery
  • Lithium 3V/195mAH
Power Input
  • DC input: 5V - 20V (max @ 10A), support single power source and VCC_RTC from COM Express connector
  • AT/ATX mode support
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC to +85ºC (-40ºF to +185ºF)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • N/A
Dimensions
  • 293.4 x 171.5 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
