SKU: CEM130 - AMD Ryzen V1000

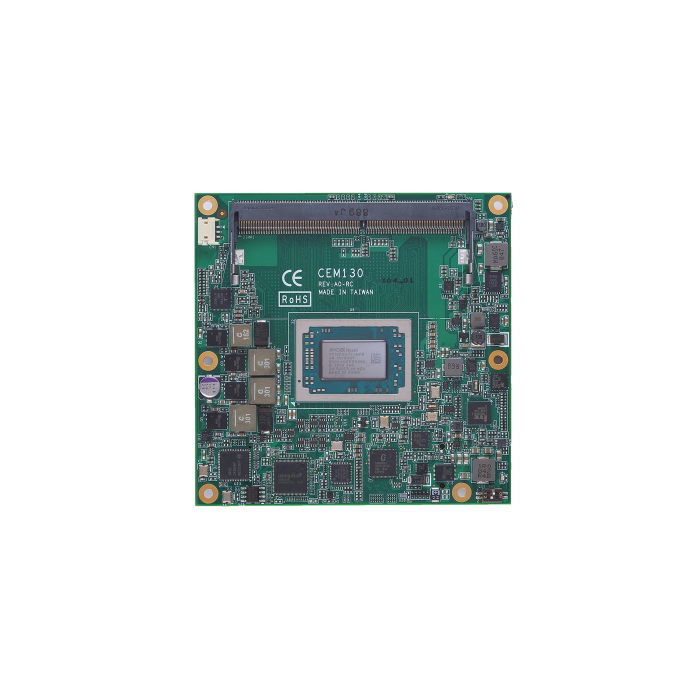

COM Express Type 6 Compact Module with AMD Ryzen™ Embedded V1000 Processor

Datasheet

Description

AMD Ryzen™ Embedded V1000 processors

2 DDR-2400/3200 SO-DIMM for up to 32GB of memory

Max. up to 7 lanes of PCI Express

2 SATA-600

3 USB 3.0 and 8 USB 2.0

TPM 2.0 supported

Wide voltage input from +8V to +20V

Data sheet

Brand

Axiomtek

Specifications

CPU	AMD Ryzen™ Embedded V1000 series V1202B / 2.3 GHz (12-25W) V1605B / 2.0 GHz (12-25W) V1756B / 3.25 GHz (35-54W) V1807B / 3.35 GHz (35-54W)
Chipset	SoC integrated
System Memory	2 x DDR4-2400/3200 SO-DIMM, up to 32GB (dual channel ), non-ECC/ECC memory
BIOS	AMI
Serial	1 x LPC 1 x SPI 2 x TX/RX
USB	3 x USB 3.0 8 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i210)
Display	1 x VGA; 1920 x 1200 @60Hz 1 x LVDS dual-channel 18/24-bit or eDP 1.3 (optional) 2 x DDI (HDMI 1.4, DVI, DisplayPort 1.2)
GPIO	4-CH in & 4-CH out
Audio	HD link interface to baseboard for Codec
Storage	2 x SATA-600
Expansion	7 x PCIe x1 via PCIe bridge
Others	1 x I2C
Battery	N/A
Power Input	ATX: +12V, +5VSB AT: +12V Wide range input: +8V to +20V
Watchdog Timer	65536 levels, 0 to 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Relative Humidity	10% - 95% relative humidity, non-condensing
Vibration	N/A
Dimensions	95 x 95 mm
Board Thickness	2.0 mm
Certifications	CE
