SKU: CEM310 - Intel Atom x5 and x7

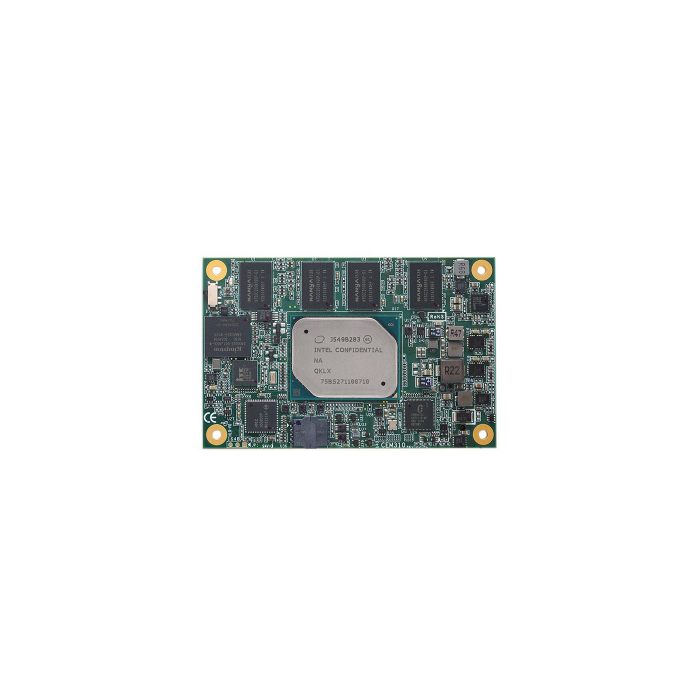

COM Express Type 10 Mini Module with Intel® Atom® x5 and x7 Processor

Datasheet

Description

Intel® Atom® x5 and x7 processors (Apollo Lake)

4GB DDR3L memory onboard

Max. up to 4 lanes of PCI Express

2 SATA-600

2 USB 3.0 and 8 USB 2.0

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Atom® x7-E3950 (2.0 GHz) Intel® Atom® x5-E3940 (1.8 GHz) Intel® Atom® x5-E3930 (1.8 GHz)
Chipset	SoC integrated
System Memory	4GB DDR3L memory onboard
BIOS	AMI
Serial	1 x LPC 1 x SPI 2 x TX/RX
USB	2 x USB 3.0 8 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i210-IT)
Display	1 x DDI (DisplayPort, HDMI, DVI) 1 x LVDS; 18/24-bit single channel (eDP optional)
GPIO	4-CH in & 4-CH out
Audio	HD link interface to baseboard for Codec
Storage	2 x SATA-600
Expansion	4 x PCIe x1 (3 x1 while internal LAN is connected)
Others	1 x LPC 1 x SPI 1 x I2C
Battery	N/A
Power Input	ATX: +12V, +5VSB AT: +12V Wide range input: +4.75V to +20V
Watchdog Timer	65536 levels, 0 to 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	Industrial: -40°C to +85°C (-40°F to +185°F) Standard: -20°C to +70°C (-4°F to +158°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	3.5 Grms
Dimensions	84 x 55 mm
Board Thickness	2.0 mm
Certifications	CE
