SKU: CEM311 - Pentium N4200/Celeron N3350

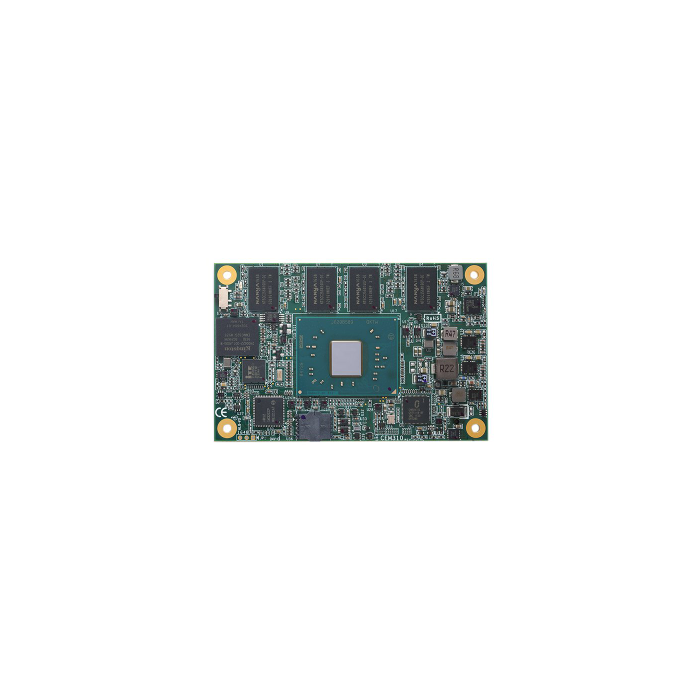

COM Express Type 10 Mini Module with Intel® Pentium® Processor N4200 & Celeron® Processor N3350

Datasheet

Description

Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)

Onboard 4GB DDR3L memory

Max. up to 4 lanes of PCI Express

2 SATA-600

2 USB 3.0 and 8 USB 2.0

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Pentium® processor N4200 & Celeron® processor N3350 onboard
Chipset	SoC integrated
System Memory	Onboard 4GB DDR3L memory
BIOS	AMI
Serial	2 x Serial TX/RX
USB	2 x USB 3.0 8 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x DDI (DP, HDMI, DVI) 1 x LVDS (eDP optional)
GPIO	4-IN & 4-OUT
Audio	HD link interface to baseboard for Codec
Storage	eMMC 5.0 upt o 64GB (optional) 2 x SATA-600
Expansion	4 x PCIe x1 devices (3 x1 while internal LAN is connected)
Others	1 x LPC interface 1 x SPI interface 1 x I2C
Battery	N/A
Power Input	ATX: +12V,+5VSB AT: +12V Wide range input: +4.75V to +20V
Watchdog Timer	65536 levels, 0 - 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	-20ºC to +70ºC (-4ºF to +158ºF)
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	3.5 Grms
Dimensions	84 x 55 mm
Board Thickness	2.0 mm
Certifications	CE
