CEM841 - Celeron J1900

SKU: CEM841 - Celeron J1900

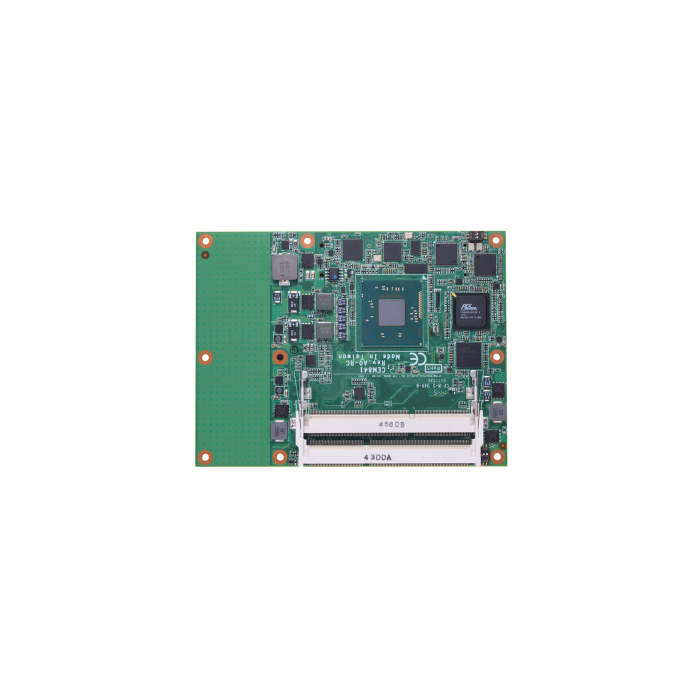

COM Express Type 2 Basic Module with Intel® Celeron® Processor J1900/N2807

Description

Intel® Celeron® processor J1900/N2807 (Bay Trail)

2 SO-DIMM DDR3L-1066/1333 up to 8GB

Max. up to 8 lanes of PCIe

1 SATA-300 and 1 IDE

8 USB 2.0

Download

More Information

Brand Axiomtek
Specifications
CPU
  • Intel® Celeron® processor J1900 2 GHz or Celeron® N2807 1.58 GHz onboard
Chipset
  • SoC integrated
System Memory
  • 2 x SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
Serial
  • N/A
USB
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210AT)
Display
  • 1 x VGA
  • 1 x LVDS
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • 1 x SATA-300
Expansion
  • 1 x PCIe x4
  • 4 x PCIe x1 (or 3 x PCIe x1 while internal LAN is connected)
Others
  • 1 x LPC interface
  • 1 x IDE
Battery
  • N/A
Power Input
  • ATX: +12V and 5VSB or AT: +12V
Watchdog Timer
  • 255 levels, 1~255 sec. or min.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C ~ +60°C (32°F ~ 140°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 125 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE
