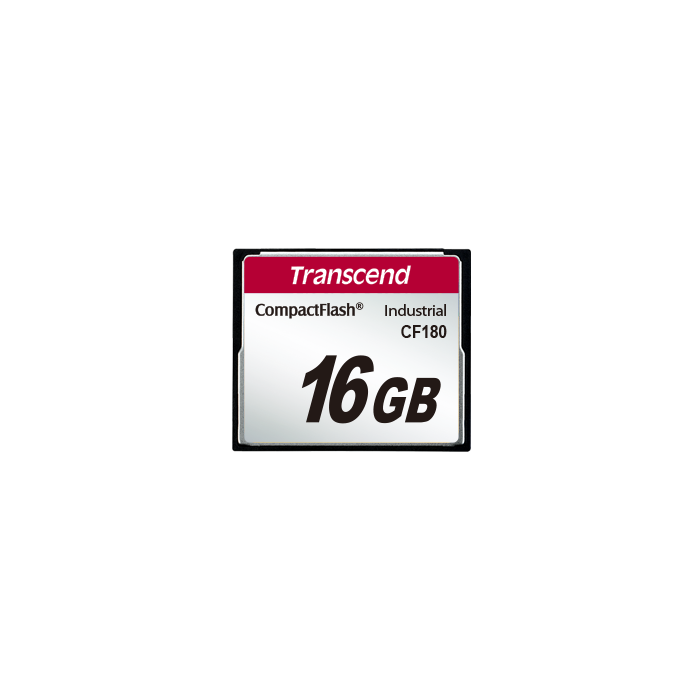

CF180 & CF180I CompactFlash Cards

In stock
Brand: Transcend

Transcend's SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands.

Enquire Now
Enquire about this product:

Transcend's SLC Mode technology is a low-cost solution that provides performance comparable to SLC NAND flash at a lower cost. Transcend's SLC Mode CF180 CompactFlash cards, with a high data transfer rate, are ideal for embedded systems, medical instruments, road surveillance systems, and other industrial applications with high performance and capacity requirements. CF180 CF cards have error correction capability, maintain data integrity, and have an extended lifespan due to their use of Static Data Refresh technology.

Transcend also offers the CF180I CompactFlash cards in a wide temperature range (-40°C to 85°C) to ensure sustained functionality, enhanced endurance, and optimal reliability in mission-critical applications.

Key Features:

  • Compliant with RoHS standards
  • Compliant with CompactFlash specification 6.0
  • High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
  • Durability: 10,000 insertion/removal cycles
  • Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Based on Ultra DMA Mode 5
  • True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
  • True IDE Mode: Fixed Disk (Standard)
  • Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
  • Built-in ECC (Error Correction Code) functionality
  • Static Data Refresh
  • Erase Count Monitoring
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • Wear-Leveling
  • Security Command

This product is listed in Industries, Partners, Digital Signage, Industrial Automation, Gaming, Transcend


Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin Count 50 pin
Form Factor
  • Compact flash card


Flash Type
  • MLC NAND flash (SLC mode)
  • 128 MB/
  • 256 MB/
  • 512 MB/
  • 1 GB/
  • 2 GB/
  • 4 GB/
  • 8 GB/
  • 16 GB

Operating Environment

Operating Voltage
  • 3.3V±5%
  • 5V±10%
Operating Temperature
  • Extended Temp.
    -25°C (-13°F) ~ 85°C (185°F)
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)


Power Consumption (Max.) 0.6 watt(s)


Read Speed (Max.) up to 85 MB/s
Write Speed (Max.) up to 70 MB/s
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) up to 210 TBW
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses endurance under the highest capacity.
