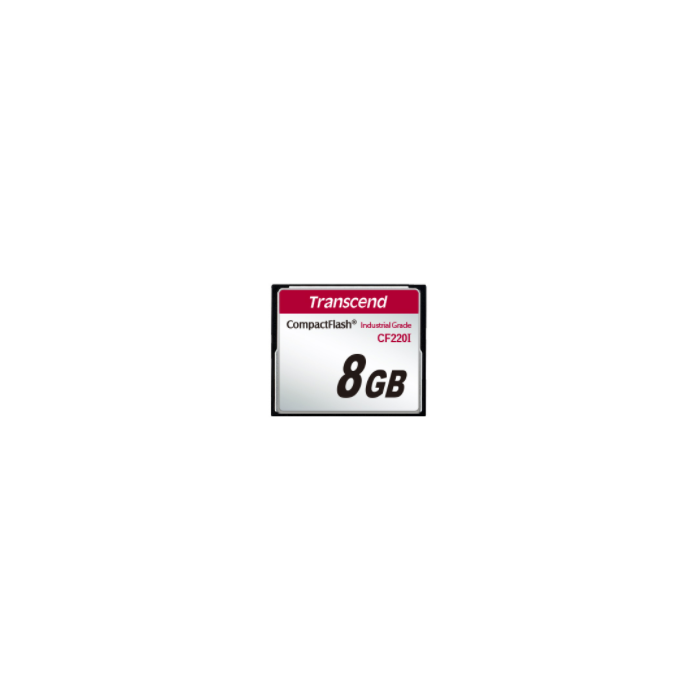

CF220I - 128MB - 8GB Compact flash card

SKU: CF220I - 128MB - 8GB Compact flash card

Ruggedized and featuring excellent temperature flexibility while delivering top performance, Transcend's CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.

Description

Compliant with CompactFlash specification 6.0

Compliant with RoHS 2.0 standards

Enhanced S.M.A.R.T. function for durability

Security Command

Global Wear-Leveling and Block management for reliability

Static Data Refresh

Early Retirement

Erase Count Monitoring

Operation Modes: PC Card Memory, PC Card IO, True IDE

Download

More Information

Specifications

Appearance

Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin 50 pin
Form Factor
  • Compact flash card

Storage

Flash Type
  • SLC NAND flash
Capacity
  • 128 MB/
  • 256 MB/
  • 512 MB/
  • 1 GB/
  • 2 GB/
  • 4 GB/
  • 8 GB

Operating Environment

Operating Voltage
  • 3.3V±5%
  • 5V±10%
Operating Temperature -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 100°C (212°F)
Humidity 0% ~ 95%
Shock
  • Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Max.) 0.54 watt(s)

Performance

Read Speed (Max.) 56 MB/s
Write Speed (Max.) 44 MB/s
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.

Warranty

Warranty
  • Three-year Limited Warranty
