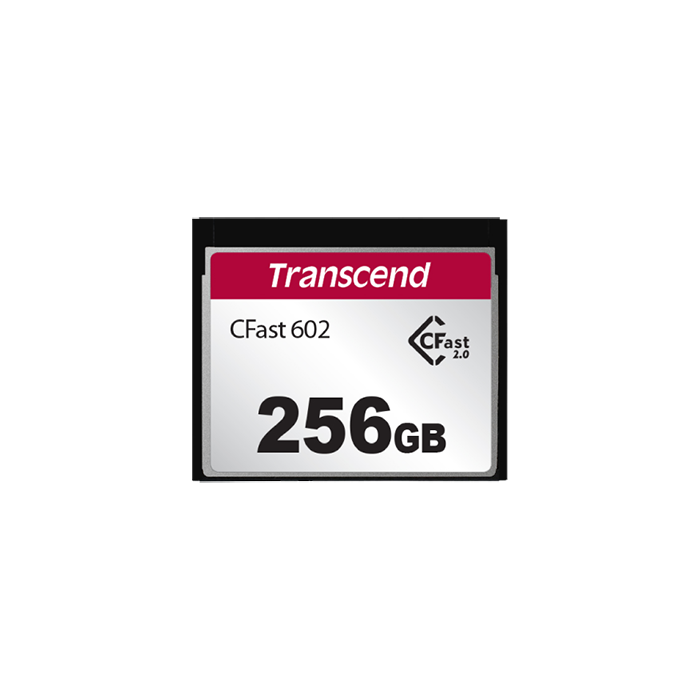

CFX602 & CFX602I CFast Cards

SKU: CFX602 & CFX602I CFast Cards

Transcend CFast 2.0 CFX602 Memory Cards boast high data transfer rates and extra large storage capacity, perfect for serving as bootable disks.

Description

Transcend CFast 2.0 CFX602 Memory Cards have a SATA III interface and extra large storage capacity, making them ideal for use as bootable discs. The CFX602I's wide-temperature capability (-40°C to 85°C) provides superior stability in harsh environments.

Key Features:

  • Compliant with RoHS 2.0 standards
  • Compliant with CFast specification 2.0
  • MLC NAND flash
  • Durability: 10,000 insertion/removal cycles
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Built-in ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • Wear-Leveling
  • Power-saving DevSleep (Device Sleep) mode

Download

More Information

Brand Transcend
Specifications

Appearance

Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Form Factor
  • Compact flash card

Interface

Bus Interface
  • SATA III 6Gb/s

Storage

Flash Type
  • MLC NAND flash
Capacity
  • 8 GB/
  • 16 GB/
  • 32 GB/
  • 64 GB/
  • 128 GB/
  • 256 GB

Operating Environment

Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard Temp.
    -5°C (23°F) ~ 70°C (158°F)
  •
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)

Power

Power Consumption (Max.) 2.15 watt(s)

Performance

Read Speed (Max.) up to 500 MB/s
Write Speed (Max.) up to 350 MB/s
Mean Time Between Failures (MTBF) 1,000,000 hour(s)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
