D611 - Intel Mobile Core 11th Gen, 1xDP, 2xHDMI
In stock
SKU:
D611
Brand: Giada Technology Inc.
Digital Signage Player, i5-1135G7 / i7-1165G7, Iris® Xe Graphics
Downloads:
Enquire Now
Enquire about this product

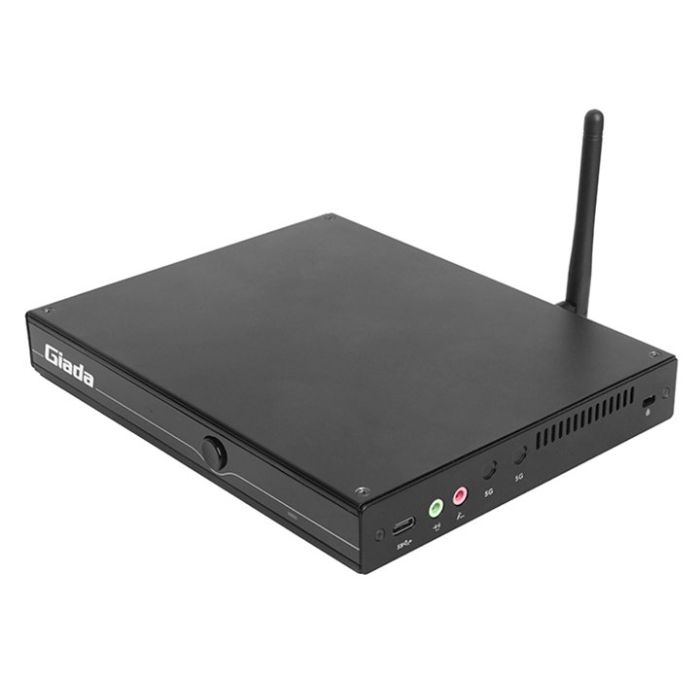

The Giada Tech D611 is an 11th gen Intel Digital Signage Player supporting 8K displays. Based on the Iris Xe Graphics GPU it provides 1 x Display Port - 8K @ 60Hz , 2 x HDMI – 4K @ 60Hz and multiple USB + RS232 housed in 190 x 149 x 26mm. Support for Wifi 6 and onboard Sim slot allows easy integration of LTE module for complete processing/communication package.
1 x DP, 2 x HDMI, Supporting 8K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242/2280) for SSD
Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G
Ethernet Access
| D611-N1-1115G440M0G | D611-N1-1135G740M0G | D611-N2-1165G740M0G | ||
| Processor | CPU | Intel®Core™ i3-1115G7 | Intel®Core™ i5-1135G7 | Intel®Core™ i7-1165G7 |
| BIOS | AMI Source Code | |||
| Chipset | SOC | |||
| Memory | Type | DDR4-3200MHz | ||
| Socket | 2 x SO-DIMM | |||
| Max Size | 32GB | |||
| Graphics | GPU |
Intel® 11th UHD Graphics |
Intel® Iris Xe Graphics | |
| Graphic Engine |
DirectX 12, OpenGL 4.5, OpenCL 2.2 8K60 12b 4:2:0 HEVC/VP9/SCC
|
|||
| DP | 1 x DP (Max.7680 x 4320 @60Hz) | |||
| HDMI | 1 x HDMI (Max.4096x2304 @60Hz) | |||
| HDMI | 1 x HDMI (Max.4096x2304 @60Hz) | |||
| Network | Controller | Realtek 8111H Gigabit Ethernet | ||
| Interface | 1 x RJ45 | |||
| I/O | USB |
1 x USB3.2 Gen2, 2 x USB2.0
|
||
| USB Type-C |
1 x USB Type-C3.2 Gen2
|
|||
| Serial Port |
1 x RS232
|
|||
| Audio | 1 x AUDIO-OUT, 1 x MIC-IN | |||
| Mini-PCIe | 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G | |||
| Wireless |
1 x E-key M.2 (2230) for WiFi/BT
|
|||
|
1 x B-key M.2 (3052) for 3G/4G/5G
|
||||
| SIM | 1 x SIM Slot | |||
| TPM | Infineon TPM 2.0 | |||
| Storage | M.2 |
1 x M-key M.2 (2242/2280) for SATA / NVMe
|
||
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support | ||
| Auto Power On | Power Activated Automatically Start | |||
| Remote Control | By IR Controller for Power On | |||
| Operation System | Windows |
Windows 10 IoT Core
|
||
| Linux |
Ubuntu 18.04/20.04
|
|||
| Power | Power Type | DC-IN | ||
| Input Voltage | 12V / 19V | |||
| Mechanical | Dimensions (W × D × H) | 189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"） | ||
| Construction | Metal | |||
| Mounting | Desk/Wall Mounting and VESA Mounting Kit (JZ183) | |||
| Color | Black | |||
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow | ||
| Relative Humidity | 95%@40℃ (non-condensing) | |||
| Certification | Certification | CE, FCC Class B, CCC | ||
