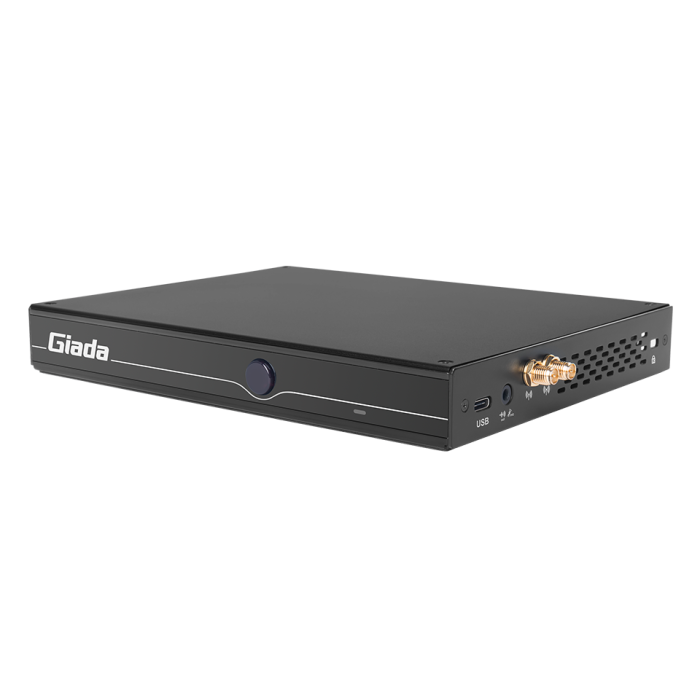

D614 Quad Output Media Player
4 Video Output Media Player Raptor Lake-refresh
Key Features:
- Intel® Raptor Lake-refresh Core processors
- 4 x HDMI, Optional: 2 x HDMI, 1 x DP
- Up to 7680 x 4320 @60 Hz
- Support Wi-Fi/BT module
- Support 3G/4G/5G module
- Support vPro Technology
Description
Product Overview
The Giada D614 is a high-end digital signage media player powered by Intel’s Raptor Lake-refresh Core 3-100U or Core 5-120U processors. It delivers robust real-world performance for dynamic display applications in settings such as restaurants, banks, airports, and shopping malls.
Key Features
Multiple 4K Display Support
- Four independent HDMI outputs supporting 4K at 60 Hz or a single 4K and four FHD outputs
- Ideal for video walls, digital menu boards, and transportation signage
Secure vPro Platform
- Intel® vPro with Hardware Shield protection provides below-the-OS security, data safeguards, and advanced threat detection
- Enhances device security for unattended or networked deployments
Flexible I/O and Expansion
- CPU options include Intel Core 3 (100U) or Core 5 (120U) with 6 or 10 cores
- Up to 96 GB DDR5-5200 memory via dual SO-DIMM slots
- Storage support via one M-Key M.2 (2280) slot for PCIe4.0 x4 SSD
Connectivity Options
- Intel i226LM (1 GbE) with one 2.5 GbE RJ45 port
- Wireless support via M.2 slot for Wi-Fi 5/6/6E (CNVi) and optional 3G/4G/5G via B-Key plus SIM slot
Versatile Interfaces
- USB: 1 × Type-C 3.2 Gen2, 1 × USB 3.2 Gen2, 2 × USB2.0
- Serial: 1 × RS-232 port
- Audio: 2-in-1 headset jack (MIC-IN & AUDIO-OUT)
- Antenna connectors: 2 for Wi-Fi/BT and 2 reserved for 5G
Built-in System Features
- Optional TPM 2.0 for secure hardware authentication
- Watchdog timer and auto power-on support
- Real-time clock (RTC) with daily or weekly wake-up scheduling
Compact and Efficient Design
- Compact metal enclosure (189.6 × 148.3 × 26 mm)
- Power supply: DC-IN 19 V / 4.74 A
- Operating temperature range 0 °C to 45 °C with airflow (0.7 m/s)
- Certified CE and FCC Class B
Dimensions Drawings
Download
More Information
| Brand | Giada Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
D614-100U50N0G-GIA
CPU: Intel Core 3 processor 100U
Display: 4 x HDMI (Max.4096 x 2304 @60 Hz)
Memory: Up to 96 GB, 2 x SO-DIMM DDR5-5200 MHz
D614-120U50N0G-GIA
CPU: Intel Core 5 processor 120U
Display: 4 x HDMI (Max.4096 x 2304 @60 Hz)
Memory: Up to 96 GB, 2 x SO-DIMM DDR5-5200 MHz
Packing List
2 x Wi-Fi Antenna,
1 x AC Power Cable,1 x AC Power Adapter
