DE67/ F302, 7th Gen i series, DP/HDMI/VGA
In stock
SKU:
DE67/F302
Brand: Giada Technology Inc.
Fanless i3/i5 7th Gen DP, HDMI,VGA media player
Enquire Now
Enquire about this product:

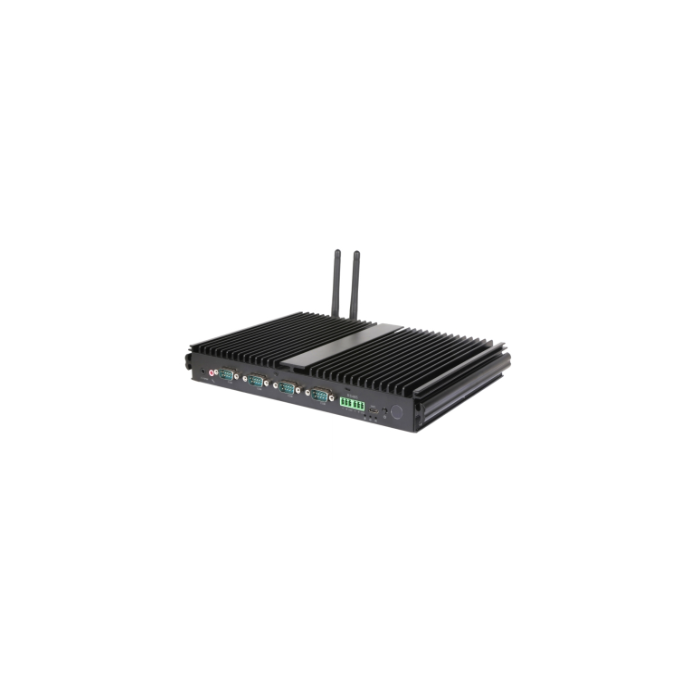

DE67 from Giada is a high-end digital signage computer powered by a choice of either the Intel Core i5-7200U or the i3-7100U processors from Intel 7th generation family. Supporting 3 independent displays and having comprehensive I/O, the DE67 is a strong contender for advanced digital signage projects.
· Intel® 7th Genneration Core Processors
· 2 x SO-DIMM DDR3L,Up to 32GB
· 1 x DP,1 x HDMI 2.0,1 x VGA
· 1 x 2.5"SATA,1 x mSATA,1 x M.2 for SSD
· 1 x Type-C USB 3.0,3 x USB 3.0,2 x USB 2.0,4 x RS232,2 x RS485
· 2 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G,1 x SIM Slot
| DE67-N1-7100U3000G/DE67-N1-7200U3000G | ||
| Processor | CPU | Intel® Core i3-7100U / Intel® Core i5-7200U |
| Frequency | 2.40GHz / 2.50 GHz (Up to 3.10GHz ) | |
| BIOS | AMI Source Code | |
| Chipset | SOC | |
| Memory | Type | DDR3L-1600MHz |
| Socket | 2 x SO-DIMM | |
| Max Size | 32GB | |
| Graphics | GPU | Intel® HD Graphics 620 |
| Graphic Engine | Direct3D 2015, OpenGL 4.5, OpenCL 2.1 | |
| DP | 1 x DP (Max.4096 x 2304@60Hz) | |
| HDMI | 1 x HDMI (Max.3840 x 2160@60Hz) | |
| VGA | 1 x VGA (Max.2048 x 1536@60Hz) | |
| Network | Controller | 1 x Intel I211, 1 x Intel I219, Gigabit Ethernet |
| Interface | 2 x RJ45 | |
| I/O | USB | 1 x Type-C USB 3.0, 3 x USB 3.0, 2 x USB 2.0 |
| Serial Port | 4 x RS232, 2 x RS485 | |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT | |
| Mini-PCIe1# | 1 x Full-size Mini-PCIe for mSATA | |
| Mini-PCIe2# | 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G | |
| M.2 | 1 x M.2 (2242/2280) for SSD | |
| SIM Slot | 1 x SIM Slot | |
| Storage | SATA | 1 x 2.5" SATA |
| mSATA | 1 x Full-size Mini-PCIe for mSATA | |
| M.2 | 1 x M.2 (2242/2280) for SSD | |
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start | |
| RTC | Set Up Independently Every day, A Week as a Cycle | |
| Remote Control | By IR Controller for Power On | |
| Operation System | Windows | Windows 8.1/10(64-bit) |
| Power | Power Type | DC-IN |
| Input Voltage | 19V/3.42A | |
| Mechanical | Dimensions (W × D × H) | 260mm x 173.4mm x 38.5mm(10.24"x6.83"x1.52") |
| Fanless | Yes | |
| Construction | Metal | |
| Mounting(Optional) | Desk/Wall Mounting and VESA Mounting Kit (JZ300) | |
| Color | Black | |
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@40℃ (non-condensing) | |
| Certification | Certification | CE, FCC Class B, CCC |
