DF610 - 10th Gen Fanless Player
In stock
SKU:
DF610
Brand: Giada Technology Inc.
DF610 Comet Lake Ultra-thin High-end Fanless Player
Enquire Now
Enquire about this product:

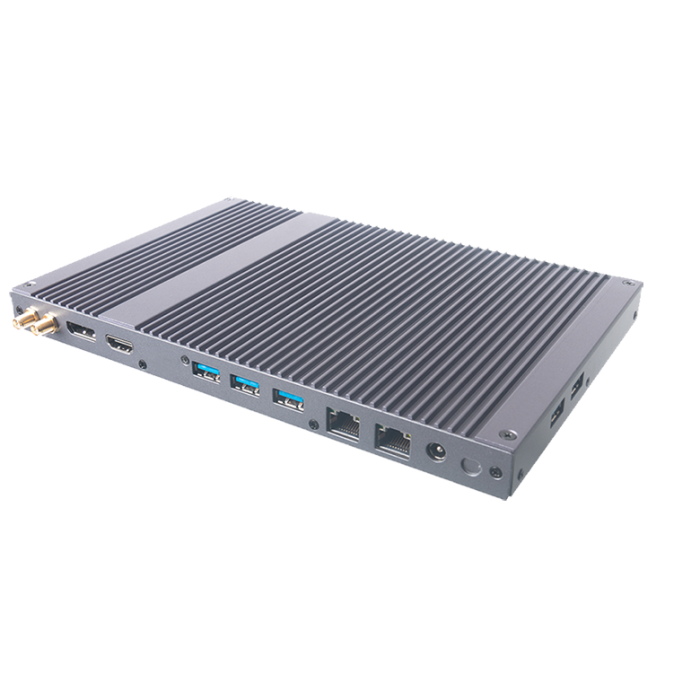

The Giada DF610 is an ultra-thin high-end fanless digital signage player measuring 22mm thin. Equipped with 10th Gen Intel Comet Lake processor, this signage player supports 4K displays to provide stunning visuals.
Key Specifications
1 x DP, 1 x HDMI, Supporting 4K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242/2280) for SATA/NVMe
1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G, 1 x SIM Slot
| Processor | CPU | Intel Core i3-10110U or | Intel Core i5-10210U |
| BIOS | AMI Source Code | ||
| Chipset | SOC | ||
| Memory | Type | DDR4-2400MHz | |
| Socket | 2 x SO-DIMM | ||
| Max Size | 32GB | ||
| Graphics | GPU | Intel 10th Gen. UHD Graphics | |
| Graphic Engine | Direct3D 2015, OpenGL 4.5, OpenCL 2.1 | ||
| DP | 1 x DP (Max.4096 x 2304 @60Hz) | ||
| HDMI | 1 x HDMI (Max.4096x2304 @60Hz) | ||
| HDMI | 1 x HDMI (Max.4096x2304 @24Hz) | ||
| Network | Controller | 2 x Realtek 8111G Gigabit Ethernet | |
| Interface | 2 x RJ45 | ||
| I/O | USB | 5 x USB 3.2 Gen2 (10 Gbps) | |
| Serial Port | 1 x RS232 | ||
| Audio | 1 x AUDIO-OUT, 1 x MIC-IN | ||
| Mini-PCIe | 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G | ||
| M.2(2230) | 1 x M.2(2230) for WiFi | ||
| SIM | 1 x SIM Slot | ||
| TPM | Infineon TPM 2.0 (Optional) | ||
| Storage | M.2 | 1 x M.2(2242/2280) for SSD | |
| JAHC Tech | Watchdog Timer | 0~255 Second Time Out Support | |
| Auto Power On | Power Activated Automatically Start | ||
| Remote Control | By IR Controller for Power On | ||
| RTC | Set Up Independently Every day, A Week as a Cycle | ||
| Wake On Lan | Yes | ||
| Operation System | Windows | Windows 10（64-Bit） | |
| Linux | Support | ||
| Power | Power Type | DC-IN | |
| Input Voltage | 19V / 3.42A | ||
| Mechanical | Dimensions (W × D × H) | 189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"） | |
| Construction | Metal | ||
| Mounting | Desk/Wall Mounting and VESA Mounting Kit (JC300) | ||
| Colour | Black | ||
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow | |
| Relative Humidity | 95%@40℃ (non-condensing) | ||
| Certification | Certification | CE, FCC Class B, CCC | |
| License | The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. | ||
