DF614 Fanless Signage Player with Intel Core
RAPTOR LAKE-U REFRESH FANLESS SIGNAGE PLAYER
Key Features:
- Intel Core 3 processor 100U or 5 processor 120U
- 2 x 1GbE RJ45
- 1 x DP (7680 x 4320 @60 Hz)
- 2 x HDMI (4096 x 2304 @60 Hz)
- Fanless design
Description
Product Overview

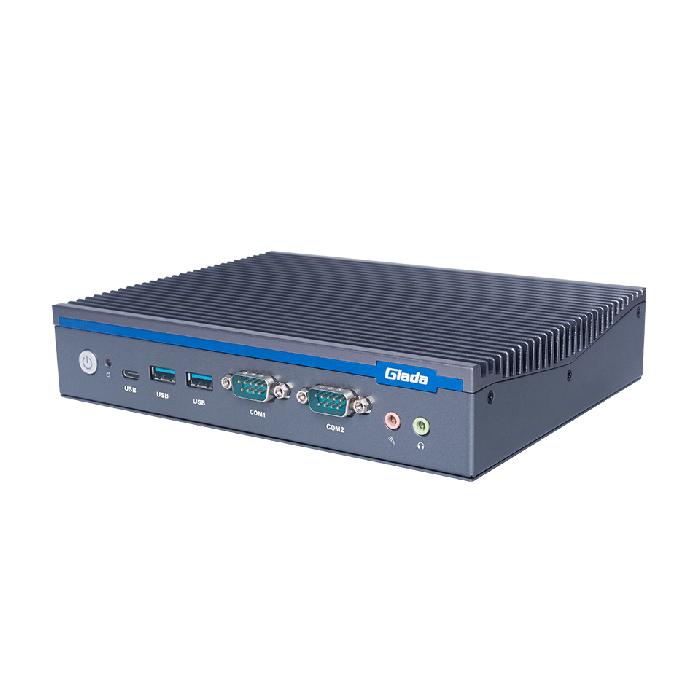

The Giada DF614 is a fanless high performance embedded PC designed for digital signage, kiosks, commercial display systems and embedded edge applications. Powered by Intel Raptor Lake-U Refresh processors, it offers options for Intel Core 3 Processor 100U and Intel Core 5 Processor 120U, delivering strong multitasking performance with efficient 15 W operation. With support for up to 96 GB DDR4 memory, triple display output, 8K resolution via DisplayPort and a compact metal enclosure, the DF614 is well suited to demanding 24/7 visual and embedded deployments.
Key Features
Intel Raptor Lake-U Refresh Platform
-
Intel Core 3 Processor 100U and Intel Core 5 Processor 120U options
-
Up to 10 cores and 12 threads for multitasking performance
-
15 W configurable TDP for efficient operation
-
Designed for signage, kiosk and embedded PC applications
Triple Display Output
-
One DisplayPort output supporting up to 7680 × 4320 at 60 Hz
-
Two HDMI outputs supporting up to 4096 × 2304 at 60 Hz
-
Supports one 8K display or two 4K displays
-
Suitable for large format displays, kiosks and commercial visual systems
Fanless Metal Design
-
Passive thermal cooling system for quiet operation
-
Fanless design helps reduce maintenance and failure points
-
Dust-resistant construction for commercial environments
-
Compact grey metal enclosure for professional installation
Memory and Storage
-
Supports up to 96 GB DDR4-3200 memory
-
Two SO-DIMM slots for flexible memory configuration
-
One M.2 2242/2280 PCIe 4.0 x4 slot for SSD storage
-
Suitable for fast system response and local content storage
Networking and Wireless Expansion
-
Dual Gigabit Ethernet with Intel i219-LM and Realtek RTL8111H controllers
-
Two 1GbE RJ45 ports for wired networking
-
M.2 E-Key slot for Wi-Fi and Bluetooth modules
-
M.2 B-Key slot and SIM slot for 3G or 4G mobile network expansion
Rich I/O Connectivity
-
One USB Type-C port
-
Four USB 3.2 Gen2 ports and two USB 2.0 ports
-
One RS-232 port and one RS-232/422/485 port
-
Microphone input and audio output for multimedia applications
System Reliability
-
Optional TPM 2.0 support
-
Watchdog timer support
-
Auto power on function
-
Independent RTC setup for scheduled operation
Applications and Use Cases
The DF614 is suitable for:
-
Digital signage and commercial displays
-
Kiosk systems and self service terminals
-
Large format visual applications
-
Retail, hospitality and corporate display systems
-
Embedded PC and edge system deployments
Dimensions/Drawings
Download
More Information
| Brand | Giada Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
SKU: DF614-100U40N0G-GIA
CPU: Intel® Core 3 processor 100U
SKU: DF614-120U40N0G-GIA
CPU: Intel® Core 5 processor 120U
