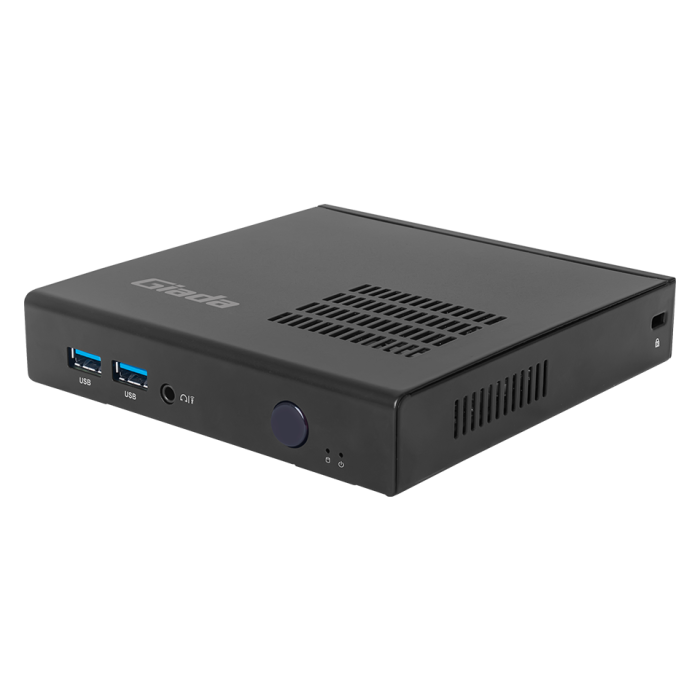

Shop DK310 Elkhart Lake Media Player

SKU: DK310-J64XX

Elkhart Lake Ultra-Compact Media Player Mid Range Embedded Media Player/PC

Key Features:

Intel Elkhart Lake Processors
1 x HDMI (Max. 4096 x 2160 @60Hz)
1 x DP (Max. 4096 x 2160 @60Hz)
Onboard LPDDR4 4GB (Optional: 8GB)
1 x Full-size Mini-PCIe for MSATA
Onboard eMMC5.1 32GB (Optional: 64GB)
1 x Rj45, 1 x M.2 for WiFi/BT, 2 x WiFi Antenna

Datasheet

Description

This ultra-slim player is powered by Elkhart Lake embedded processors, including the low TDP (10W) Celeron J6412 and Pentium J6426. The Elkhart Lake platform improves single-thread speed by up to 1.7x and multi-thread performance by up to 1.5x generation over generation.

The player uses Intel UHD Graphics for 10th Gen Intel Processors, which provides up to a 2X performance boost in graphics over the previous generation. Its HDMI 2.0a (4096 x 2160@60Hz) and DisplayPort 1.2 (4096 x 2160@60Hz) connectors offer spectacular dual 1080p or dual UHD video playback.

Key Features:

Intel Elkhart Lake Processors
1 x HDMI (Max. 4096 x 2160 @60Hz)
1 x DP (Max. 4096 x 2160 @60Hz)
Onboard LPDDR4 4GB (Optional: 8GB)
1 x Full-size Mini-PCIe for MSATA
Onboard eMMC5.1 32GB (Optional: 64GB)
1 x Rj45, 1 x M.2 for WiFi/BT, 2 x WiFi Antenna

Download

Datasheet

More Information

Brand

Giada Technology Inc.

Specifications

CPU	Intel® Celeron® J6412 processor Intel® Pentium® J6426 processor
Frequency	2.60 GHz/3.00 GHz
Chipset	Soc
Processing Units	4 Cores/4 Cores
TDP	10 W/10 W
System
System Memory	4 GB, Onboard LPDDR4-2666 MHz (Optional: 8 GB)
Storage	1 x Full-size Mini-PCIe for MSATA Optional: Onboard eMMC5.1
TPM	Optional: TPM2.0
Watchdog Timer	Yes
Auto Power On	Yes
RTC	Set up independently every day, a week as a cycle
Remo on	NA
Power Requirement	DC-IN, 19 V/2.37 A
Dimensions	130 mm x 129.3 mm x 25.4 mm (5.12” x 5.09” x 1”)
Construction	Metal, Black
Operating System	Windows 10 (64bit) /Windows 11 (64bit) Linux Ubuntu (64bit)
Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity	95% @ 45°C (non-condensing)
Certifications	CE, FCC Class B
Network
Network Controller	1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface	1 x RJ45
Wi-Fi/BT	1 x E-Key (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile Network	NA
Display
GPU	Intel® UHD Graphics
Graphic Engine	DirectX, OpenGL, OpenCL, Intel® Quick Sync Video
Graphic Engine	4kp60 8-bit H.264 decode, 4kp60 8-bit and 10-bit H.265/HEVC decode, up to 4kp60 VC1, VP8, VP9 decode, 1080p60 MPEG2 decode
Display Interface	1 x DP (Max.3840 x 2160 @60 Hz) 1 x HDMI (Max.3840 x 2160 @60 Hz)
I/O Interface
USB	4 x USB3.2 Gen2 (10 Gbps)
Serial Port	1 x RS232
Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
Button	1 x Power on, 1 x CLR-CMOS
Antenna	2 x Connector for Wi-Fi/BT
