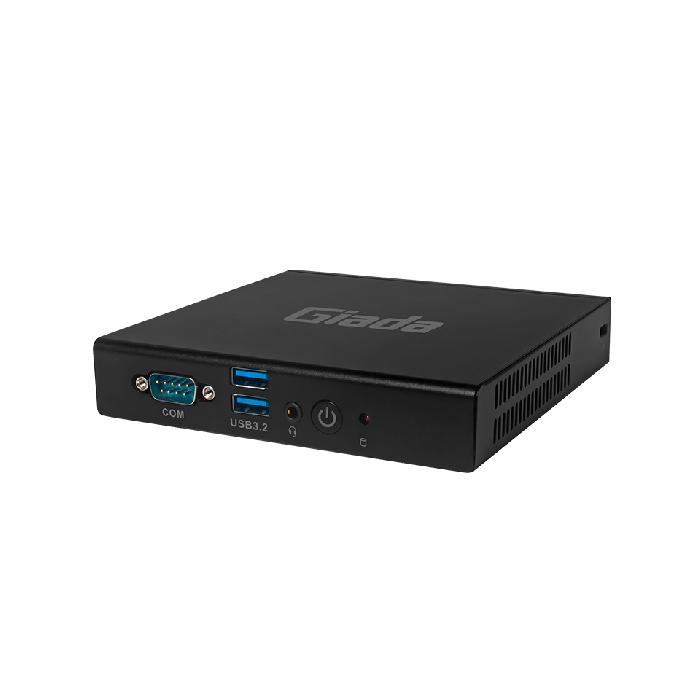

DK320 High Performance Signage Player with Intel Core Series 3
Wildcat Lake Ultra-Compact High-Performance Digital Signage Player
Key Features:
- Intel® Wildcat Lake Core Series 3
- Up to 18 TOPS NPU
- 2 x HDMI Up to 4K @ 60 Hz
- Support Wi-Fi/BT module
- Support Wi-Fi 6/7
Description
Product Overview
The Giada DK320 is an ultra compact digital signage player designed for high-performance media playback, AI-driven applications and commercial display deployments. Built on Intel Wildcat Lake processors, it delivers efficient performance in a small form factor suitable for space-constrained installations. With dual HDMI outputs supporting high resolution displays, modern connectivity options and support for Windows or Linux operating systems, the DK320 is well-suited for digital signage networks, kiosks, interactive displays and commercial multimedia environments.
Key Features
High Performance Platform
-
Intel Wildcat Lake processor platform is designed for efficient operation
-
Integrated NPU supporting up to 18 TOPS for AI-related workloads
-
Intel UHD Graphics supporting modern multimedia applications
-
Supports DDR5 memory up to 48 GB through a SO-DIMM slot
Display and Multimedia Support
-
Dual HDMI outputs supporting resolutions up to 4096 × 2304 at 60 Hz
-
Suitable for dual-screen digital signage or multi-display systems
-
Hardware graphics acceleration for smooth media playback
Storage and Expansion
-
M.2 PCIe 4.0 slot supporting high-speed SSD storage
-
M.2 E Key slot supporting WiFi and Bluetooth modules
-
Compatible with WiFi 6, WiFi 6E and WiFi 7 wireless technologies
Connectivity and Integration
-
2.5 Gigabit Ethernet for high-speed wired networking
-
Four USB 3.2 Gen2 ports for peripherals and external devices
-
RS232 serial port for integration with control systems and industrial equipment
-
Audio interface supporting microphone input and audio output
-
Dual antenna connectors for wireless modules
Compact System Design
-
Metal enclosure designed for durability and stable operation
-
Compact dimensions approximately 130 mm × 129.3 mm × 25.4 mm
-
Active smart fan cooling system for thermal management
-
Supports auto power on, watchdog timer and real-time scheduling features
Application Ready
The DK320 is suitable for:
-
Digital signage and advertising displays
-
Interactive kiosks and information terminals
-
Retail and hospitality display systems
-
Smart building dashboards and monitoring screens
-
Edge AI applications and multimedia platforms
Download
More Information
| Brand | Giada Technology Inc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
TBA
