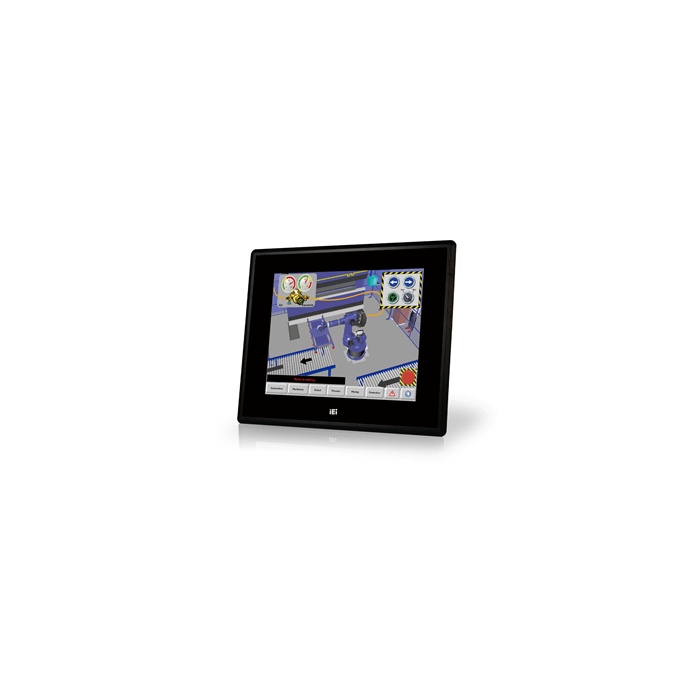

DM-F08A, 8" LCD touch, 12VDC input

SKU: DM-F08A

8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input

Description

8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input, R10



  • Robust IP65 aluminum front bezel
  • Aesthetic ultra-thin bezel for seamless panel mount installation
  • DC input
  • DVI / VGA flexible video input solution
  • Resistive single touch
  • Wide temperature support

Download

More Information

Brand IEI Integration Corp.
Specifications
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 500
Contrast Ratio 20.8340277777778
LCD Size 8”(4:3)
Max Resolution 800 (W) x 600 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C (with air flow)
Storage Temperature -20°C ~ 70°C
I/O Interface
I/O Ports and Switches 1 x VGA (DB-15)
1 x DVI
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
LCD
LCD Color 262K
Pixel Pitch (mm) 0.0675 x 0.2025
Viewing Angle (H-V) 140°/120°
Physical Characteristics
Cutout Dimensions 206 x 154
Dimensions (LxWxH) (mm) 222.2 x 182.2 x 42.7
Power
Power adapter 12V DC
Touch
Touch Controller Penmount 6000
Touch Screen 5-wire resistive single touch window
Weight
Weight 1.33/4.5
