DM-F19A, 19" LCD touch, 9~36VDC input

In stock
SKU:
DM-F19A
Brand: IEI Integration Corp.

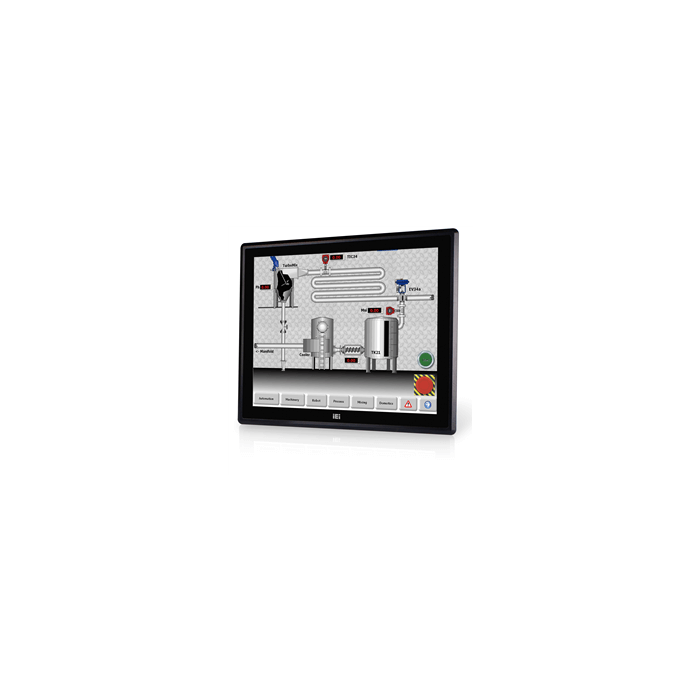

19" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20


Enquire Now
Enquire about this product:

19" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20



  • Robust IP65 aluminum front bezel
  • Aesthetic ultra-thin bezel for seamless panel mount installation
  • Wide range 9V~36V DC input
  • DVI / DisplayPort / VGA flexible video input solution
  • Projected capacitive multi-touch and resistive single touch options
  • Wide temperature support

This product is listed in Industrial Monitors
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 350
Contrast Ratio 1000:1
LCD Size 19”(4:3)
Max Resolution 1280 (W) x 1024 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 70°C
I/O Interface
I/O Ports and Switches 1 x VGA (DB-15)
1 x DVI
(F19A only)
1 x HDMI(F17A only)
1 x DisplayPort1.1
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
1 x 9V-36V terminal block
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.294 x 0.294
Viewing Angle (H-V) 170° / 160°
Physical Characteristics
Cutout Dimensions 430 x 355
Dimensions (LxWxH) (mm) 372.4 x 447.4 x 49.57
Power
Power adapter 9V~36V DC
Touch
Touch Controller 5-wire resistive single touch window/ Penmount 6000
Touch Screen 2-point projected capacitive touch window/ EETI EXC7200
Weight
Weight 5.4 /8.4
