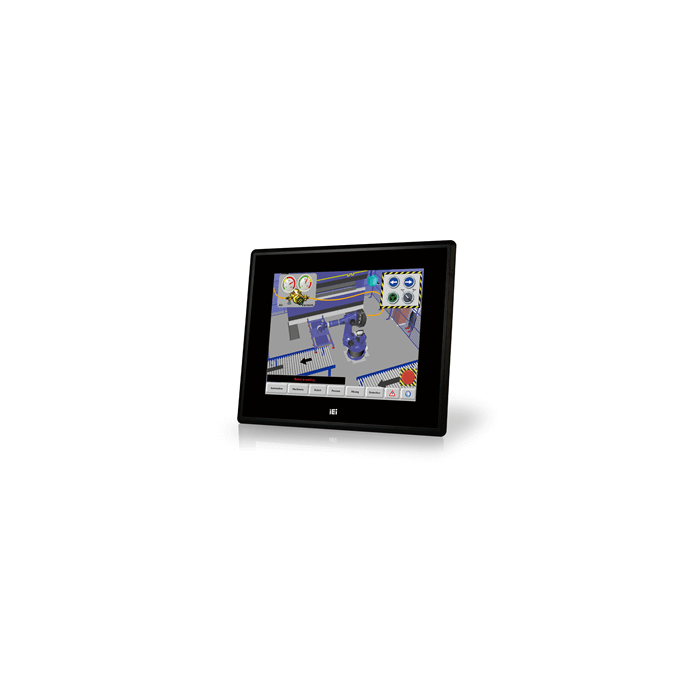

DM-F65A 6.5" IP65 Industrial Monitor

End of Life
SKU: DM-F65A

6.5" 800 cd/m² High luminance VGA LCD monitor with VGA, Aluminum die casting front panel, Black color,W/ USB resistive touch screen, R10

Description

6.5" 800 cd/m² High luminance VGA LCD monitor with VGA, Aluminum die casting front panel, Black color,W/ USB resistive touch screen, R10



  • Robust IP65 aluminum front bezel
  • Aesthetic ultra-thin bezel for seamless panel mount installation
  • DC input
  • DVI / VGA flexible video input solution
  • Resistive single touch
  • Wide temperature support

Download

More Information

Brand IEI Integration Corp.
Specifications
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 800
Contrast Ratio 600:1
LCD Size 6.5”(4:3)
Max Resolution 640 (W) x 480 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C (with air flow)
Storage Temperature -20°C ~ 70°C
I/O Interface
I/O Ports and Switches 1 x VGA (DB-15)
1 x DVI
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.207 x 0.207
Viewing Angle (H-V) 160° / 140°
Physical Characteristics
Cutout Dimensions 180 x 140
Dimensions (LxWxH) (mm) 191.8 x 154.36 x 42.88
Power
Power adapter 12V DC
Touch
Touch Controller Penmount 6000
Touch Screen 5-wire resistive single touch window
Weight
Weight 1.1/2.6 Kg
