End of Life

SKU: DM-FW19A/PC-R21

This product is now end of life and may no longer be available. Please see its direct replacement here: DM2-W156

Datasheet

Description

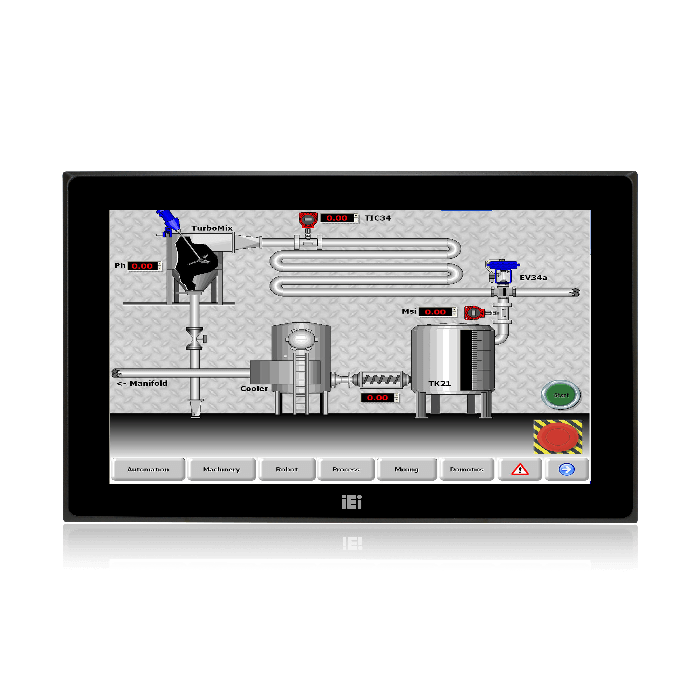

15.6” 400 cd/m² 1366x768 LCD monitor, Aluminum front panel, Black color, W/ USB PCAP touch screen, 9 ~36V DC input, R10

Datasheet

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	400
Contrast Ratio	500:1
LCD Size	15.6” (16:9)
Max Resolution	1366 (W) X 768 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.252 x 0.252
Viewing Angle (H-V)	170° / 160°
Physical Characteristics
Cutout Dimensions	379.1 x 232.3
Dimensions (LxWxH) (mm)	400.1 x 253.3 x 52.9
Power
Power adapter	9V~36V DC
Touch
Touch Controller	EETI EXC3 series
Touch Screen	10-point projected capacitive touch window
Weight
Weight	4 / 6.5
I/O Interface
I/O Interface	1 x DC Input Jack(9~36V (Lockable))
	1 x Display Port
	1 x HDMI
	1 x Power In(9V-36V terminal block)
	1 x USB 2.0(touch)
	1 x VGA
