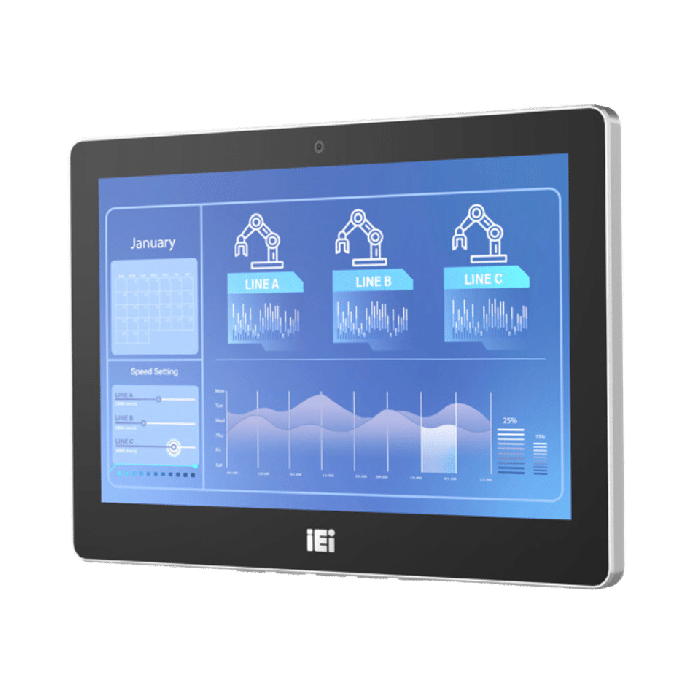

DM2-W101G 10.1" IP65-Front Industrial Display
IEI's Latest Generation Industrial Monitor
Key Features:
- Front OSD, easy access for setting adjustment
- Speakers are positioned at the front, ensuring clear sound delivery
- Supports gloved operation and waterproof protection
- Built-in camera, ideal for AI facial recognition
- USB 3.2 Gen1 Type-A supports 10W
- IP65-compliant front panel with aluminum frame
- Anti-glare and anti-UV PCAP
The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezel. It is designed to fit industrial automation. The flat front panel provides IP 65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.
|
Model Name |
DM2-W101G(L) |
|
LCD Size |
10.1" (16:10) |
|
Brightness (cd/m2) |
400 |
|
Max Resolution (W-H) |
1280x800 |
|
Contrast Ratio |
800:1 |
|
LCD Color |
16.7M |
|
Viewing Angle (H-V) |
178°/178° |
|
Backlight MTBF (hrs) |
20000 |
|
Touch Screen |
10-point projected capacitive touch window (anti-UV, anti-glare surface) |
|
Touch Controller |
Capacitive: LiTek |
|
I/O Ports and Switches |
|
|
OSD Keypad |
5-key membrane OSD keypad |
|
Camera |
Standard configuration* |
|
Speaker |
2 x 2W AMP (internal speaker)* |
|
Construction Material |
Aluminum front frame and sheet metal rear cover |
|
Mounting |
Panel mount, rack mount, VESA 100 |
|
Enclosure Colour |
Black |
|
Dimensions (LxWxH) (mm) |
251 x 180.95 x 49.30 |
|
Cutout Dimensions (mm) |
241.80 x 157.80 |
|
Operating Temperature |
-20°C ~ 60°C (with airflow) |
|
Storage Temperature |
-20°C ~ 70°C |
|
Humidity |
10% to 95%@40°C (non-condensing) (50%@60°C) |
|
Vibration |
MIL-STD-810F 514.5C-1 |
|
Shock |
|
|
IP Level |
IP 65 compliant front panel |
|
Safety & EMC |
CE/FCC/UKCA Class A |
|
Power Input |
9~36V DC |
|
Power Cord |
EU |
* L (Lite) without Camera, Speaker, USB-A x 4
