DM2-W238 21.5” IP65 Front Industrial Monitor

Product Overview

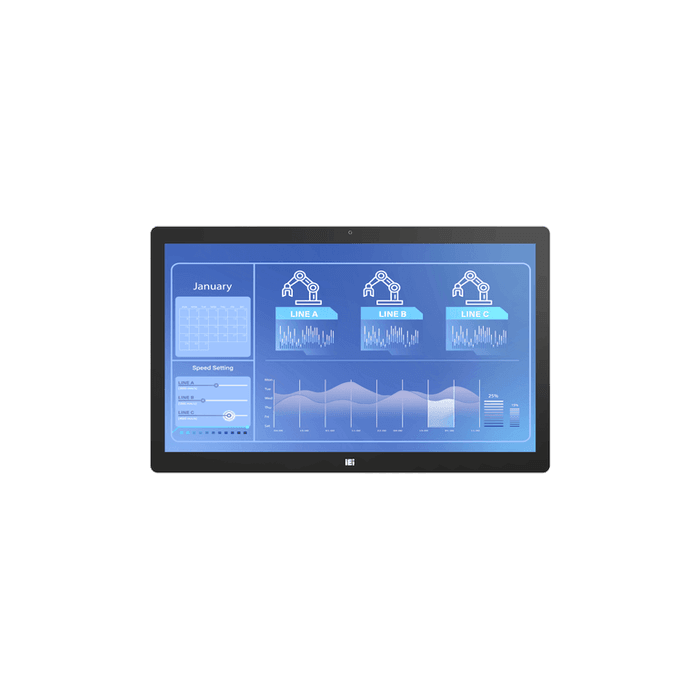

The IEI DM2-W238 is a 23.8" industrial monitor designed for factory automation, machine control, CNC equipment, kiosks, vending systems and other demanding commercial and industrial applications. It features a Full HD 1920 × 1080 display, 350 cd/m² brightness, 10-point projected capacitive touch and an IP65-rated front panel with an aluminium frame. With HDMI, DisplayPort and VGA video inputs, a wide range of 9 V to 36 VDC power input and an integrated camera, speakers and USB hub on standard models, the DM2-W238 is built for reliable operation in industrial environments.

Key Features

23.8 Inch Full HD Display

• 23.8 inch 16:9 TFT LCD

• 1920 × 1080 Full HD resolution

• 350 cd/m² brightness

• 1000:1 contrast ratio

• 178° horizontal and vertical viewing angles

• 16.7 million colours

• 30,000-hour backlight MTBF

Projected Capacitive Touch

• 10-point projected capacitive touchscreen

• Anti-UV surface treatment

• Anti-glare surface for improved visibility

• Supports gloved operation

• Designed for reliable interaction in industrial environments

Rugged Industrial Design

• IP65-compliant front panel

• Aluminium front frame with sheet metal rear cover

• Scratch-resistant touchscreen construction

• Narrow bezel design for space-efficient installations

• VESA 100 mounting support

Built-In Camera and Audio

• Integrated 720p wide-angle fixed-focus camera on standard models

• Suitable for video communication and facial recognition applications

• Integrated dual 2 W speakers on standard models

• Front-positioned speakers maintain clear audio in panel-mount installations

• Lite model available without camera, speakers and USB hub

Video and I/O Connectivity

• 1 x HDMI input

• 1 x DisplayPort input

• 1 x VGA DB-15 input

• 1 x USB 3.2 Gen1 Type-B port

• 4 x USB 3.2 Gen1 Type-A ports on standard models

• USB Type-A ports support up to 5 V / 2 A output

• 1 x line-out connection

Integrated USB Hub

• Four USB 3.2 Gen1 Type-A ports on standard models

• Supports simultaneous connection of multiple peripherals

• Suitable for keyboards, mice, flash drives and external storage

• Reduces the need for an additional external USB hub

Front OSD Controls

• Front accessible 5-key OSD controls

• Brightness adjustment

• Backlight, contrast and sharpness configuration

• Colour temperature and gamma adjustment

• Input source selection

• VGA position, clock and phase adjustment

Wide Range Power Input

• 9 V to 36 VDC input support

• DC jack and 3-pin terminal block connections

• 12 VDC power adapter support

• Suitable for industrial systems with varying DC power requirements

Environmental Support

• Extended temperature design for demanding industrial environments

• IP65 front protection against dust and water

• Operating humidity from 10% to 95% at 40°C, non-condensing

• Storage temperature from -20°C to 60°C

• Military-standard vibration resistance

• Designed for continuous industrial and commercial use

Applications and Use Cases

The DM2-W238 is suitable for:

• Industrial automation systems

• CNC and laser equipment

• Production monitoring

• Machine control interfaces

• Digital signage

• Self-service kiosks

• Vending machines

• Industrial HMI applications



Dimensions & Drawings
