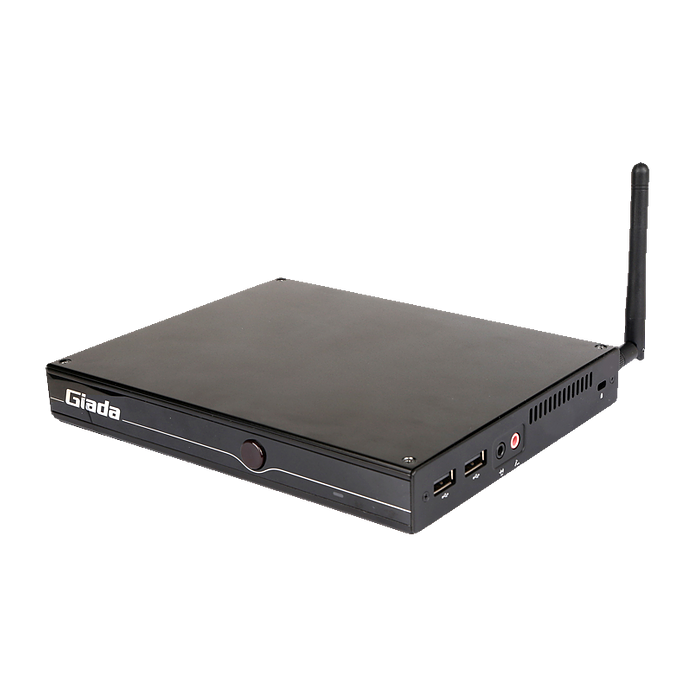

DM5 AMD Ryzen CPU 3x Display Media Player

In stock
Brand: Giada Technology Inc.

The cost-effective, book-sized DM5 applies the power and performance of AMD Ryzen CPUs and offers 4K video output via 3 x HDMI ports.

Enquire Now
Enquire about this product:

The Giada DM5 is an entry level book size Digital Signage PC based on the AMD Ryzen R1305 1.5 Ghz Embedded CPU, featuring Radeon vega 3 graphics the unit will support three independent displays at 4K resolution via HDMI.

AMD APU platform CPU

2 x SO-DIMM DDR4-2400Mhz, up to 32GB

3 x HDMI, supporting 2 x 4K@60Hz

1 x 2.5” SATA, 1 x mSATA

2 x USB3.1, 2 x USB 2.0, 1 x RS232

1 RJ45, 1 x Mini-PCIe for WiFi/BT/4G, 1 x sim slot

This product is listed in Digital Signage


Processor CPU AMD Ryzen™ R1305G
Frequency 1.5 GHz (Up to 2.8GHz)
BIOS AMI Source Code
Chipset SOC
Memory Type DDR4-2400MHz
Socket 2 x SO-DIMM
Max Size 32GB
Graphics GPU AMD Radeon™ Vega 3 Graphics
Graphic Engine DirectX12, OpenGL4.4, OpenCL 1.2

x HDMI2.0

Supporting 2 x 4K (3840x2160)@60Hz or 3 x 2K (1920x1080)@60Hz

Network Controller Realtek RTL8111H  Gigabit Ethernet
Interface 1 x RJ45
I/O USB 2 x USB 3.1, 2 x USB 2.0
Serial Port 1 x RS232
Audio 1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe#1 1 x Full-size Mini-PCIe for mSATA
Mini-PCIe#2 1 x Full-size Mini-PCIe for 3G/4G/WiFi/BT
SIM 1 x SIM Slot
Storage SATA 1 x 2.5" SATA
mSATA 1 x Full-size mSATA
JAHC Tech WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Operation System Windows Windows 10(64-bit)
Linux Ubuntu 18.04 verified
Power Power Type DC-IN
Input Voltage 19V/3.42A
Mechanical Dimensions (W × D × H) 189.6mm x 148.3mm x 26mm(7.46" x 5.84" x 1.02")
Construction Metal
Mounting Wall Mounting and VESA Mounting (JZ183)
Color Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32  ~ 104  ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC
