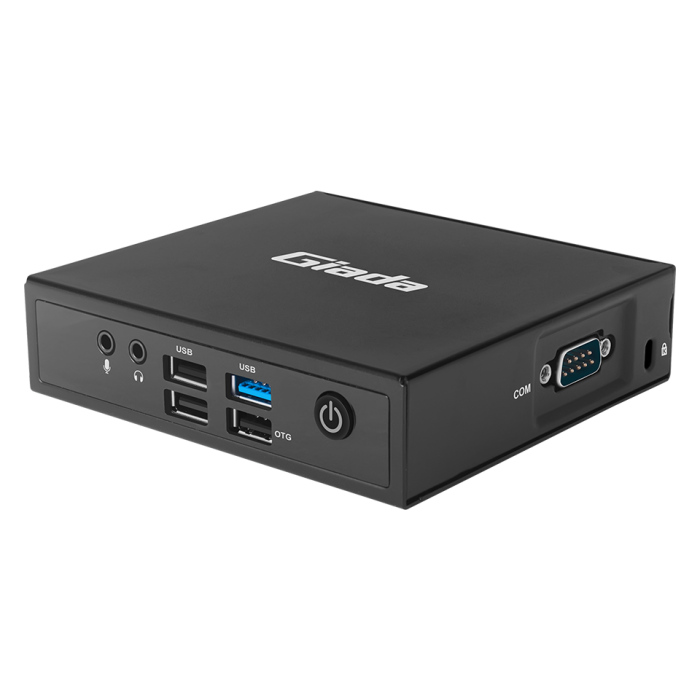

DN73 - RK3328 Quad-core Cortex-A53

In stock
Brand: Giada Technology Inc.

RK3328 Quad-core Cortex-A53 media player

Enquire Now
Enquire about this product:

RK3328 Quad-core Cortex-A53 media player

  RK3328 Quad-core Cortex-A53  up to 1.5GHz

  Onboard DDR3L 2GB Memory,

  1 x HDMI Supporting 4K 60HZ Display

  Onboard eMMC 16GB

  1 x USB3.02 x USB2.01 x USB2.0 OTG1 x RS232

  1 x RJ451 x Mini-PCIe for 3G/4G1 x SIM Slot

This product is listed in Digital Signage
Processor CPU RK3328 Quad-core Cortex-A53
Frequency Up to 1.5GHz
Chipset SOC
Memory Type DDR3L-1333MHz
Socket Onboard
Max Size 2GB (Optional:1GB)
Graphics GPU Mali-450MP2 GPU
Graphic Engine 4K H.264/H.265 video decoder, 2196P video encoder/1080P 60fps video decoders
HDMI 1 x HDMI (Max. 4K  @60Hz)Optional: VGA 1920*1080
Network Controller Realtek RTL8211E Gigabit Ethernet
Interface 1 x RJ45
I/O USB 1 x USB 3.0, 2 x USB 2.0, 1 x USB2.0 OTG
Display Interface 1 x HDMI  Optional: VGA
LAN 1 x RJ45
Serial Port 1 x RS232
Audio 1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe 1 x Full-size Mini-PCIe for 3G/4G
SIM  1 x SIM Slot
WiFi+BT on Board 1 x WiFi Module Onboard (2.4G, IEEE802.11 a/b/g/n)  Optional: WIFI  5G
LED Indicators 1 x HDD LED, 1 x Power LED
Storage eMMC Onboard eMMC 16GB (Optional: 8GB /32GB/ 64GB)
JAHC Tech WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Remote Control By IR Controller for Power On
Operation System Android Android7.1

Power Type DC-IN
Input Voltage 12V/2A

Dimensions (W × D × H) 116.6mm x 107.4mm x 30mm
Fanless Yes
Construction Metal
Mounting(Optional) Desk/Wall Mounting and VESA Mounting Kit(JT-NUC-JC530)
Color Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC
