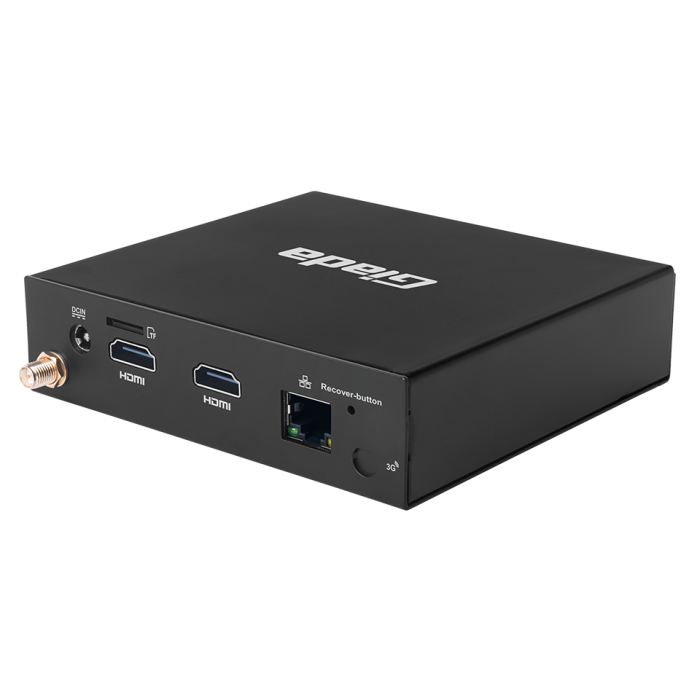

DN74 - RK3399 Quad core ARM player

In stock
SKU:
DN74
Brand: Giada Technology Inc.

DN74, RK3399 Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53


Enquire Now
Enquire about this product:



  • RK3399 Dual-core ARM Cortex-A72  and Quad - core ARM Cortex-A53
  • Onboard 4GB LPDDR4 Memory
  • 1 x HDMI,Supporting 4K Display
  • 1 x HDMI, Supporting 2K Display
  • eMMC Onboard 32GB
  • 1x USB 3.0(OTG), 3 x USB 2.0,1 x RS232
  • 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot

This product is listed in Digital Signage, Gaming
Processor CPU RK3399 Dual-core ARM Cortex-A72  and Quad-core ARM   Cortex-A53
Frequency Up to 1.8GHz
Chipset SOC
Memory Type LPDDR4  Support 2 channels
Socket Onboard
Size 4GB(2GB Optional)
Graphics GPU Mali-T860MP4
Video Decoding Capability 4K H.264/H.265 video decoder
HDMI

1 x HDMI (Max.4K @60Hz)

1 x HDMI (Max.2K @30Hz)

Network Controller Realtek RTL8211E Gigabit Ethernet
Interface 1 x RJ45
I/O USB 1 x USB 3.0 (OTG), 3 x USB 2.0
Display Interface 2 x HDMI
LAN 1 x RJ45
Serial Port 1 x RS232
Audio 1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe 1 x Full-size Mini-PCIe for 3G/4G
SIM  1 x SIM Slot
WiFi on Board

1 x WiFi Module Onboard (WIFI 5G, IEEE802.11 a/b/g/ac)

Optional: WIFI  2.4G

LED Indicators 1 x HDD LED, 1 x Power LED
JAHC WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Remote Control By IR Controller for Power On/OFF
Storage
eMMC 32GB
Optional:16GB
Operation System Android Android7.1
Power

Power Type DC-IN
Power A dapter 12V
Mechanical


Dimensions (W × D × H) 116.6mm x 107.4mm x 30mm
Fanless Yes
Construction Metal
Mounting(Optional) Desk/Wall Mounting and VESA Mounting Kit(JT-NUC-JC530)
Color Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC
