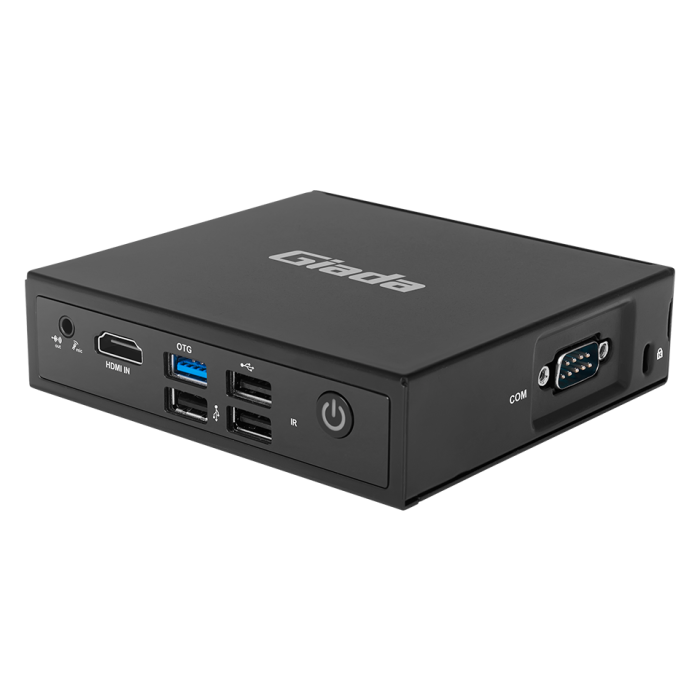

DN75 - RK3399 Dual core Cortex A72 & Quad-core Cortex-A53
In stock
SKU:
DN75
Brand: Giada Technology Inc.
Android Digital Signage Player, Onboard eMMC Storage & RAM, 2 x HDMI, 1 x HDMI input
You have to Enquire Now
Enquire about this product
RK3399 Dual core Cortex A72 and Quad-core Cortex-A53 media player
■ RK3399 Dual-core Cortex-A72 and Quad-core Cortex-A53
■ OnboardB LPDDR4 4GMemory
■ 1 x HDMI,Supporting 4K Display; 1 x HDMI, Supporting 2K Display; 1 x HDMI-IN
■ Onboard eMMC 32GB
■ 1x USB3.0 (OTG), 3 x USB2.0，1 x RS232
■ 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot
| Processor | CPU | RK3399 Dual-core Cortex-A72 and Quad-core Cortex-A53 |
| Frequency | Up to 1.8GHz | |
| Chipset | SOC | |
| Memory | Type | LPDDR4, Support 2 channels |
| Socket | Onboard | |
| Size | 4GB (Optional: 2GB) | |
| Graphics | GPU | Mali-T860MP4 |
| Video Decoding Capability | 4K H.264/H.265 video decoder | |
| HDMI |
1 x HDMI (Max.4K @60Hz) 1 x HDMI (Max.2K @30Hz) 1 x HDMI-IN |
|
| Network | Controller | Realtek RTL8211E Gigabit Ethernet |
| Interface | 1 x RJ45 | |
| I/O | USB | 1 x USB3.0 (OTG), 3 x USB2.0 |
| Serial Port | 1 x RS232 | |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT | |
| Mini-PCIe | 1 x Full-size Mini-PCIe for 3G/4G | |
| SIM | 1 x SIM Slot | |
| WiFi on Board |
1 x WiFi Module Onboard (WIFI 5G, IEEE802.11 a/b/g/ac) (Optional: WIFI 2.4GHz) |
|
| LED Indicators | 1 x HDD LED, 1 x Power LED | |
| JAHC | WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start | |
| RTC | Set Up Independently Every day, A Week as a Cycle | |
| Remote Control | By IR Controller for Power On/OFF | |
| Storage |
eMMC | 32GB (Optional:16GB) |
| Operation System | Android | Android7.1 |
| Power |
Power Type | DC-IN |
| Power A dapter | 12V/2A | |
| Mechanical |
Dimensions (W × D × H) | 116.6mm x 107.4mm x 30mm |
| Fanless | Yes | |
| Construction | Metal | |
| Mounting(Optional) | Desk/Wall Mounting and VESA Mounting Kit(JT-NUC-JC530) | |
| Color | Black | |
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@40℃ (non-condensing) | |
| Certification | Certification | CE, FCC |
