DN84 Android 14 Fanless Signage Player with RK3576

Product Overview

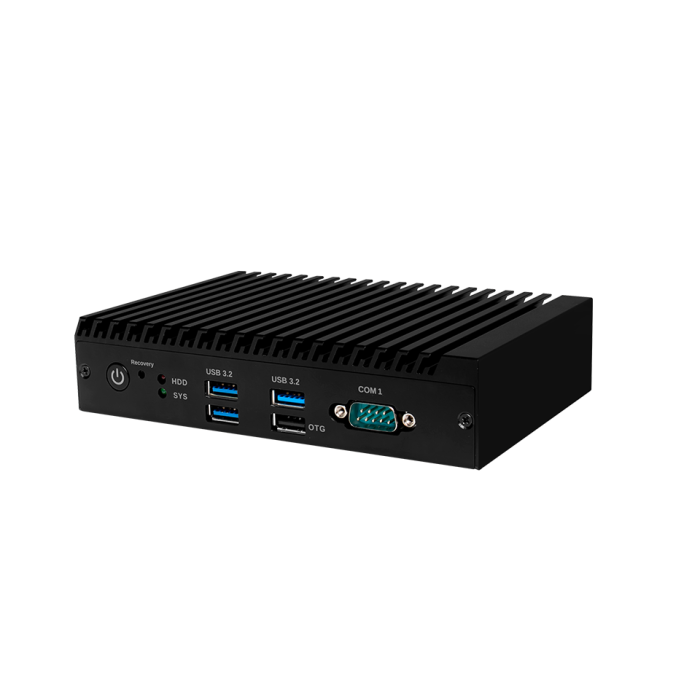

The Giada DN84 is a compact fanless embedded signage player designed for digital signage and industrial integration. Built around the Rockchip RK3576 octa-core Arm processor (4× Cortex-A72 + 4× Cortex-A53) with a built-in 6 TOPS neural-processing unit (NPU), it delivers strong inference capability in a small footprint. With dual 4K HDMI output, Android 14 or Debian 12 OS support, and a metal chassis with just DC input required, it is a flexible solution for kiosks, interactive displays, edge gateways and smart automation nodes.

Key Features

High Performance Computing

• Rockchip RK3576 octa-core ARM processor (4 × Cortex-A72 + 4 × Cortex-A53) up to 2.2 GHz

• Built-in 6 TOPS Neural Processing Unit for AI inference acceleration

• Integrated Mali-G52 GPU supporting 4K video decoding and 3D graphics

• Supports Android 14 and Debian 12 for flexible software deployment

Rugged and Reliable Design

• Fanless aluminium chassis ensures silent and maintenance-free operation

• Compact size approximately 165 × 108 × 40 mm, suitable for embedded integration

• Wide 12 V DC input for simplified installation in kiosks or industrial systems

• Optimised thermal design for 24/7 continuous operation

Display and Connectivity

• Dual HDMI 2.0 outputs supporting up to 3840 × 2160 @ 120 Hz for multi-screen applications

• Rich I/O including Gigabit LAN, multiple USB ports and optional serial interfaces

• Wireless connectivity options, including Wi-Fi and Bluetooth support

• Internal M.2 and mini-PCIe expansion slots for storage or wireless modules

Certifications and Compliance

• CE and FCC certified for commercial and industrial environments

• Designed for long-life operation and wide deployment compatibility

I/O Ports
