DRPC-124-EHL Fanless DIN-Rail Embedded System

In stock
SKU:
DRPC-124-EHL-JC-R10
Brand: IEI Integration Corp.

Discover industrial computing excellence with the fanless DRPC-124-EHL Embedded System, featuring Intel Celeron power, four GbE LAN ports, and a compact design.

Key Features:

  • Compact Industrial Mini PC
  • Fanless system
  • Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Four GbE LAN
  • CE/FCC compliant

Enquire Now
Enquire about this product:

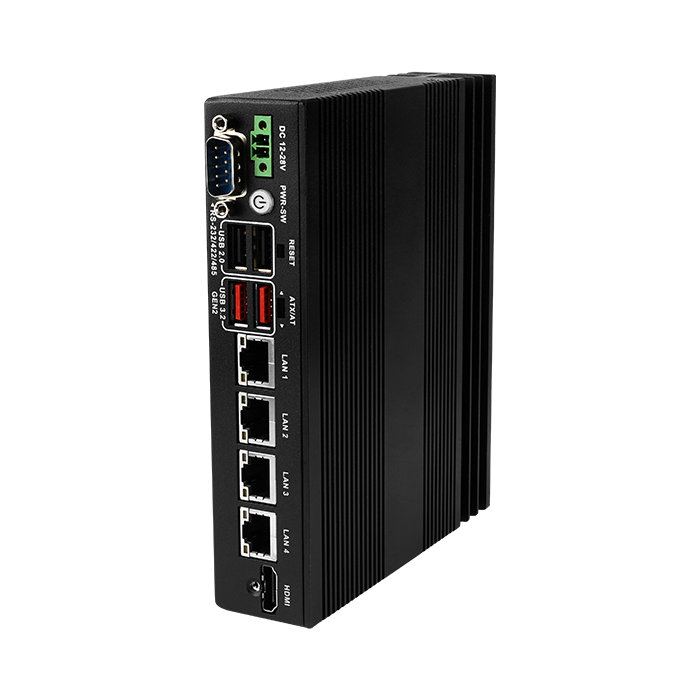

main product photo
We build to order

Introducing the DRPC-124-EHL Fanless DIN-Rail Embedded System, a compact marvel designed to revolutionize industrial computing. This fanless system operates seamlessly with the power of the Intel® Celeron® J6412 processor, reaching speeds of up to 2.6 GHz while maintaining an energy-efficient TDP of 10W. Its quad-core performance ensures optimal processing for demanding applications. With four GbE LAN ports, connectivity is enhanced, facilitating seamless data exchange in industrial environments. CE and FCC compliant, this embedded system guarantees reliability and adherence to industry standards. The DRPC-124-EHL combines compact design, impressive power, and comprehensive compatibility, making it the ultimate choice for industrial computing needs.

Key Features:

  • Compact Industrial Mini PC

  • Fanless system

  • Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)

  • Four GbE LAN

  • CE/FCC compliant

This product is listed in Industrial Automation, IEI Integration Corp., Embedded Computers
Specifications

Hardware Spec.

Form factor
SBC Form Factor
  •  Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  •  Chipset:
    SoC
  •  System Memory:
    LPDDR4x on board 8GB (MAX 16GB)
  •  Power:
    2-pin Terminal block: 12-28V DC
  •  Consumption:
    [email protected] (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
  •  USB:
    2 x USB 3.2 Gen2
    2 x USB 2.0
  •  Ethernet:
    1 x RJ-45 PCIe GbE by I210 controller
    3 x RJ-45 PCIe 2.5 GbE by I225V controller
  •  Display:
    1 x HDMI 1.4B
  •  COM Port:
    1x RS-232/422/485 (DB9)(Optional)
  •  TPM:
    Support Intel PTT
  •  Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  •  M.2:
    1 x 2242 B-key (PCIe Gen3 x2)
    1 x 2242 B-key (SATA)
    1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan Fanless
Drive Bays eMMC 5.1 (Optional) (MOQ, please contact with sales account manager)
Indicator&Buttons
Buttons 1 x Power button
1 x Clear CMOS
Indicators 1 x Power LED
Physical Characteristics
Construction Extruded aluminium alloy
Colour
Colour Black
Dimensions
Dimensions 159 x 132.5 x 35 (mm)
Weight
Weight 0.78KG /1.2kg
Environment
Operating Temperature -10°C ~ 50°C with 0.7M/S air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz,1.04 Grms, random, 1 hr/axis
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis
Safety & EMC CE, FCC, UKCA
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

DRPC-124-EHL-W10IoT21-E-R10 OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for DRPC-124-EHL Series, with DVD-ROM, RoHS
DRPC-124-EHL-JC-R10 Fanless System with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), onboard 8GB LPDDR4x memory, 1 x GbE Lan, 3 x 2.5GbE Lan, 1 x HDMI, 12-28V DC, RoHS

Package Contents

Package Content

  • 1 x DIN-rail mounting kit

  • 1 x Screw pack

  • 1 x SATA cable with power cable
