DRPC-130-AL - Atom x5-E3930 Fanless Din Rail PC

In stock
Brand: IEI Integration Corp.

Fanless Din Rail mount Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

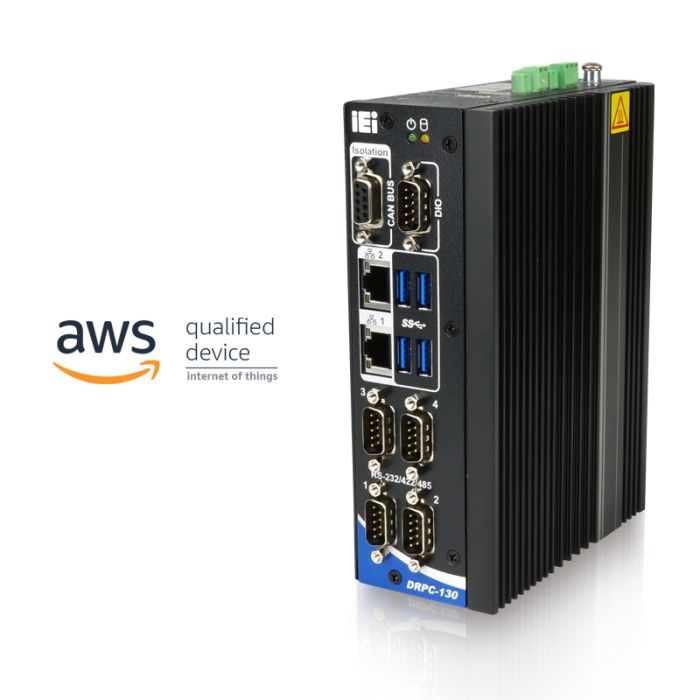

The IEI Technology DRPC-130-AL is a fanless DIN-rail embedded system based on the Intel Atom x5-E3930 1.3GHz processor up to a speed of 1.8 GHz. The rugged chassis is is designed for DIN rail installation and supports wide temp operation. Interfaces include dual GbE, Serial, CAN bus and digital I/O interface. Ideal for industrial automation applications.
SBC Form Factor ●CPU:
Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
●System Memory:
1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB)
(DRPC-130-AL-E1/4GB SKU is pre-installed with 4 GB memory)
Input : 3-pin terminal block: 12 V ~ 24 V DC
Consumption: 12V @ 2.88 A (Intel® Atom™ x5-E3930 CPU with 4GB 1600 MHz DDR3L memory)
Remote Power: PSON 2-pin terminal block
Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
Safety/EMC - CE/FCC
I/O Interface
I/O Ports ●USB:4 x USB 3.0
●Ethernet:2 x RJ-45 (PCIe GbE by Intel® I211 controller)
●COM Port:4 x RS-232/422/485
●Digital I/O:8-bit digital I/O , 4-bit input / 4-bit
●CAN-Bus:1 x DB-9 w/ 2.5kV Isolation protection, supporting 2-port CAN-bus
●Display:2 x HDMI 1.4b
Expansion Slots
Expansion Slots PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD bay
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators 1 x LED for HDD (Yellow)
1 x LED for Power (Green)
Physical Characteristics
Construction Extruded aluminum alloy
Color Black
Dimensions 58.75 x 130 x 174
Weight 1.4Kg/2.5Kg
Operating Temperature -20°C ~ 60°C with air flow (SSD)
We build to order
